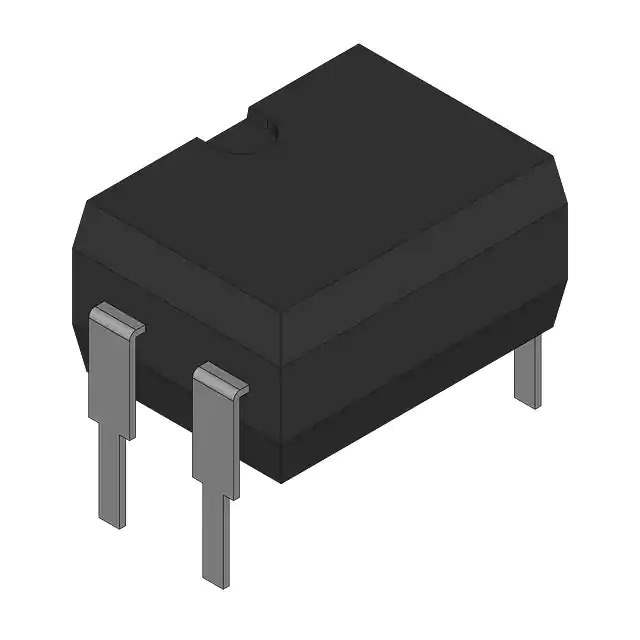

FOD617B300 Real Image
Same model may have multiple batches, images only for reference.

FOD617B300

Part No FOD617B300
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description TRANSISTOR OUTPUT OPTOCOUPLER / Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Fairchild/ON Semiconductor
Package Tube
Product Status Obsolete
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 63% @ 10mA
Current Transfer Ratio (Max) 125% @ 10mA
Rise / Fall Time (Typ) 4µs, 3µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.35V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Package / Case 4-DIP (0.300", 7.62mm)
Supplier Device Package 4-DIP
Standard Package 4,000 pcs
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 872145-FOD617B300
Ultra Librarian 3D Model Ultra Librarian FOD617B300 CAD Model

Description

The FOD617B300 is an optoisolator with a transistor and photovoltaic output.

  • Output Type: Transistor
  • Input: DC
  • Maximum Forward Current: 50mA
  • Forward Voltage: 1.35V
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Channels: 1
  • Voltage Isolation: 5000Vrms
  • Current Transfer Ratio: 63% @ 10mA
  • Output Voltage: 70V
  • Vce Saturation: 400mV
  • Maximum Current Transfer Ratio: 125% @ 10mA
  • Mounting Type: Through Hole
  • Package: 4-DIP
  • Package Width: 0.300 inches (7.62mm)
  • Product Status: Obsolete
  • Standard Package: 4,000 pieces
