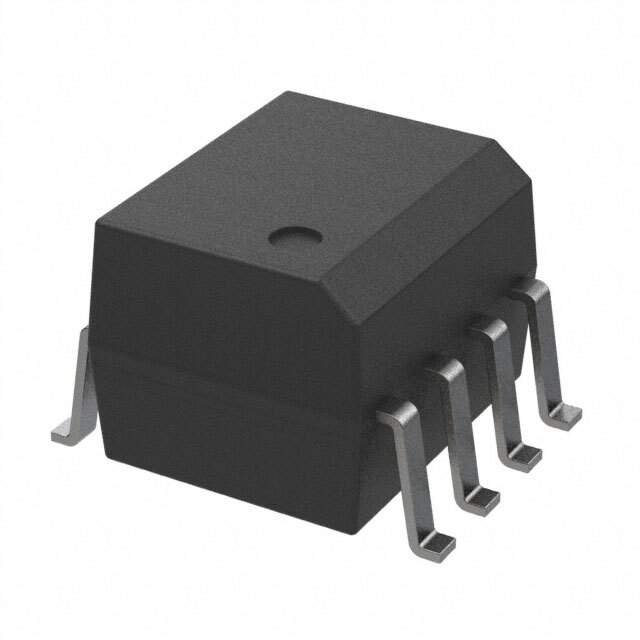

The FOD050LR1 is an obsolete(EOL) surface mount isolator component from Fairchild/ON Semiconductor.

• Part: FOD050LR1
• Manufacturer: Fairchild/ON Semiconductor
• Status: Obsolete(EOL)
• Mounting: Surface Mount
• DC Current Transfer Ratio (Min): 15% @ 16mA
• DC Current Transfer Ratio (Max): 50% @ 16mA
• Forward Voltage: 1.45V
• Isolation Voltage: 2500Vrms
• Switching Time: 1μs (Max) Turn-On/Turn-Off
• Output Voltage (Max): 7V
• Channel Output Current: 8mA
• Continuous Forward Current: 25mA
• Operating Temperature: -40°C to 85°C
• Package: 8-SOIC
