The FGL60N100BNTDN is an Insulated Gate Bipolar Transistor (IGBT) manufactured by Fairchild Semiconductor (now ON Semiconductor). It is designed for high-voltage, high-current switching applications. This IGBT combines the advantages of both MOSFETs and bipolar junction transistors, offering high input impedance and low on-state voltage drop.

Applications

• Motor Drives: Used in variable frequency drives (VFDs) for controlling the speed and torque of electric motors in industrial applications.
• Uninterruptible Power Supplies (UPS): Employed in UPS systems to provide backup power during power outages, ensuring continuous operation of critical equipment.
• Welding Machines: Integrated into welding equipment for precise control of the welding arc and power delivery.
• Induction Heating: Utilized in induction heating systems for efficient heating of metals and other materials.
• Power Factor Correction (PFC): Applied in PFC circuits to improve the power factor and reduce harmonic distortion in power systems.

Features

• High Voltage Capability: Supports high-voltage operation, making it suitable for applications with high voltage requirements.
• Low On-State Voltage Drop: Minimizes power losses during conduction, improving energy efficiency.
• High Switching Speed: Enables fast switching performance, reducing switching losses and improving overall system efficiency.
• Gate Drive Simplicity: Requires a simple gate drive circuit, simplifying the design process.
• Overcurrent Protection: Provides built-in overcurrent protection to prevent damage from excessive current.
• Fast Recovery Diode: Includes a fast recovery diode for improved performance in inductive load applications.

Benefits

• High Efficiency: Reduces power losses and improves overall system efficiency.
• Reliable Performance: Offers robust and reliable operation in demanding applications.
• Simplified Design: Simplifies the design process with its easy-to-use gate drive requirements.
• Compact Size: Allows for compact designs due to its high power density.
• Improved System Protection: Enhances system protection with its overcurrent protection feature.

Additional Details

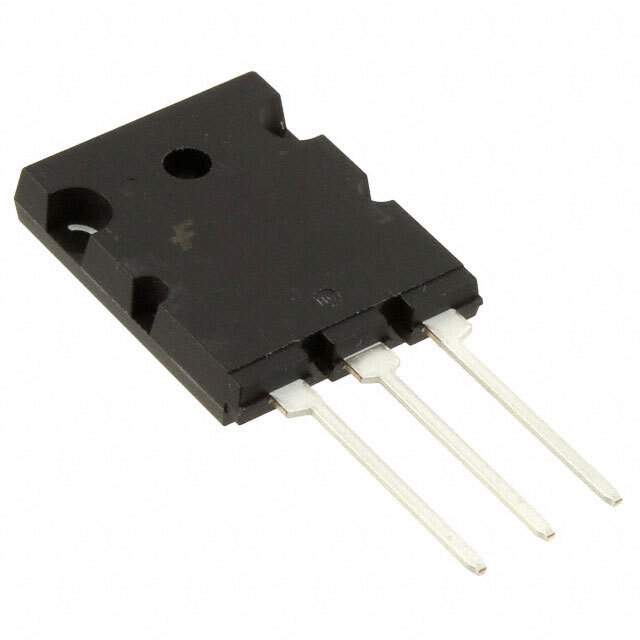

The FGL60N100BNTDN is typically packaged in a TO-247 package for efficient heat dissipation. It requires proper thermal management to ensure reliable operation at high currents. The device specifications include parameters such as VCE(sat) (collector-emitter saturation voltage), IC (collector current), and Qg (gate charge), which are critical for circuit design. This IGBT operates at a specific gate voltage range and needs appropriate drive circuitry to ensure optimal performance. It’s also important to consider the operating temperature range when designing with this component.
