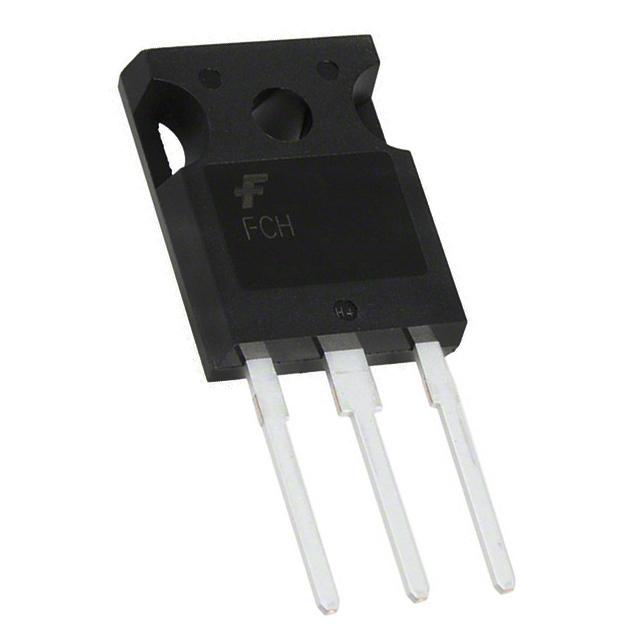

FGH40T120SMDL4 Fairchild/ON Semiconductor FGH40T120SMDL4 Real Image
Same model may have multiple batches, images only for reference.
FGH40T120SMDL4 Fairchild/ON Semiconductor FGH40T120SMDL4 Real Image
FGH40T120SMDL4 Fairchild/ON Semiconductor FGH40T120SMDL4 Real Image
Same model may have multiple batches, images only for reference.

FGH40T120SMDL4

Part No FGH40T120SMDL4
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT 1200V 80A 555W TO247-3
Datasheet
FGH40T120SMDL4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
IGBT Type Trench Field Stop
VCEO Maximum Collector-Emitter Breakdown Voltage 1200V
Maximum Current Collector 80A
Pulsed Collector Current 160A
Collector-emitter saturation voltage(Max) 2.4V @ 15V, 40A
Maximum Power Dissipation 555W
Total Switching Energy(Ets) 2.24mJ (on), 1.02mJ (off)
Input Type Standard
Gate Charge 370nC
Turn-on and Turn-off delay time 44ns/464ns
Testing Conditions 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) 65ns
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-247-4L
Win Source Part Number 1038673-FGH40T120SMDL4
Popularity Medium
Supply and Demand Status Balance
Quantity per package 450
Ultra Librarian 3D Model Ultra Librarian FGH40T120SMDL4 CAD Model

Description

The Fairchild/ON Semiconductor FGH40T120SMDL4 IGBT is a high-performance electronic component that is suitable for a wide range of applications.

  • Maximum Collector-Emitter Breakdown Voltage: 1200V
  • Maximum Current Collector: 80A
  • Reverse Recovery Time: 65ns
  • Gate Charge: 370nC
  • Case/Package: TO-247-4L
  • Mounting Type: Through-Hole
  • Total Switching Energy (On): 2.24mJ
  • Total Switching Energy (Off): 1.02mJ
  • Collector-Emitter Saturation Voltage: 2.4V @ 15V, 40A
