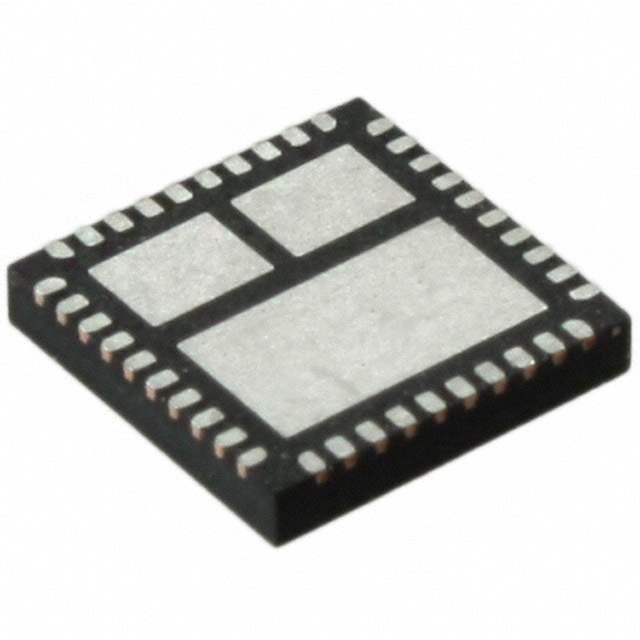

FDMF6823C Real Image
Same model may have multiple batches, images only for reference.

FDMF6823C

Part No FDMF6823C
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Full, Half - Bridge Drivers
Description Driver 1-OUT High Side/Low Side 40-Pin PQFN EP T/R / MODULE DRMOS 50A 40-PQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Applications Synchronous Buck Converters
Load Type Inductive
Technology DrMOS
Rds On (Typ) 1 Ohm LS, 1 Ohm HS
Channel Output Current 50A
Supply Voltage - Operating 4.5 V to 5.5 V
Voltage - Load 3 V to 16 V
Temperature Range - Operating -40°C to 150°C (TJ)
Features Bootstrap Circuit, Status Flag
Fault Protection Over Temperature, Shoot-Through, UVLO
Mounting SMD (SMT)
Case / Package 40-PQFN (6x6)
Win Source Part Number 016050-FDMF6823C
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 3k pcs
Family Name FDMF6823C
Introduction Date April 11, 2012
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian FDMF6823C CAD Model

Description

The Fairchild/ON Semiconductor FDMF6823C is an integrated circuit with a bootstrap circuit and status flag features, suitable for synchronous buck converters.

  • Package: 40-PQFN (6x6)
  • Supply Voltage Range: 4.5V to 5.5V
  • Channel Output Current: 50A
  • Load Type: Inductive
  • Fault Protection: Over-temperature, shoot-through, and UVLO
  • Voltage Load Range: 3V to 16V
  • Operating Temperature: -40°C to 150°C (TJ)
  • Technology: DrMOS
  • Rds On (Typ): 1 Ohm LS and 1 Ohm HS
  • Supply and Demand: Limited
  • Quantity: 3k pcs
