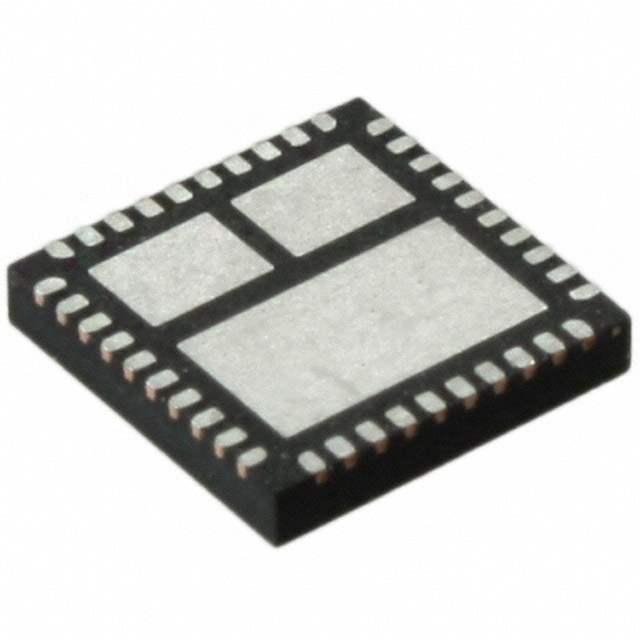

FDMF6823B

Part No FDMF6823B
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Full, Half - Bridge Drivers
Description MODULE DRMOS 55A 40-PQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Applications Synchronous Buck Converters
Load Type Inductive
Technology DrMOS
Rds On (Typ) 1 Ohm LS, 1 Ohm HS
Channel Output Current 55A
Supply Voltage - Operating 4.5 V to 5.5 V
Voltage - Load 3 V to 16 V
Temperature Range - Operating -40°C to 150°C (TJ)
Features Bootstrap Circuit, Status Flag
Fault Protection Over Temperature, Shoot-Through, UVLO
Mounting SMD (SMT)
Case / Package 40-PQFN (6x6)
Win Source Part Number 142465-FDMF6823B
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMF6823B CAD Model

Description

The 142465-FDMF6823B is an integrated circuit manufactured by Fairchild/ON Semiconductor, designed for synchronous buck converters.

  • Supply and Demand: Limited
  • Voltage Load Range: 3V to 16V
  • Channel Output Current: 55A
  • Load Type: Inductive
  • Fault Protection: Over-temperature, shoot-through, and UVLO
  • RoHS Compliant: Yes
  • Technology: DrMOS
  • Case/Package: 40-PQFN (6x6)
