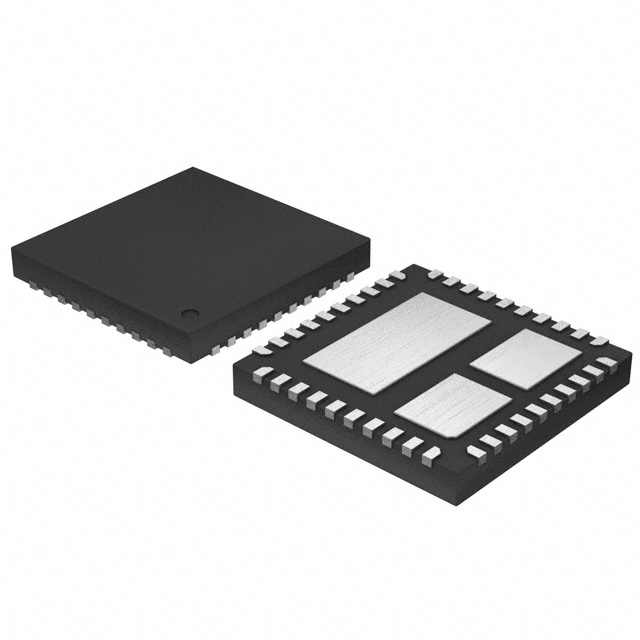

FDMF6700 Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FDMF6700

Part No FDMF6700
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Full, Half - Bridge Drivers
Description Driver plus FET Multi-chip Module
Datasheet
FDMF6700 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Part Status Obsolete(EOL)
Output Configuration Half Bridge
Applications Synchronous Buck Converters
Interface PWM
Load Type Inductive
Technology DrMOS
Output Current per Channel 25A
Current - Peak Output 65A
Operating Supply Voltage 6.4 V ~ 13.5 V
Voltage - Load 6.4 V ~ 14 V
Operating Temperature Range -55°C ~ 150°C (TJ)
Features Bootstrap Circuit
Fault Protection Shoot-Through, UVLO
Mounting SMD
Package 40-WFQFN Exposed Pad
Manufacturer Package Power66
Win Source Part Number 1173827-FDMF6700
Manufacturer Homepage www.fairchildsemi.com
Family Name FDMF6700
Introduction Date June 23, 2006
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FDMF6700 CAD Model

Description

The Fairchild/ON Semiconductor FDMF6700 is a half-bridge driver with a synchronous buck converter application.

  • Voltage rating: 6.4 V to 14 V
  • Current peak output: 65A
  • Technology: DrMOS
  • Operating supply voltage: 6.4 V to 13.5 V
  • Package: 40-WFQFN Exposed Pad
  • Packaging: reel - TR
  • Fault protection: shoot-through, UVLO
  • Features: bootstrap circuit
  • Status: obsolete (EOL)
  • Family name: FDMF6700
  • Categorized under: integrated circuits (ICs)
  • ECCN: EAR99
  • Supply and demand status: balanced
  • Alternative parts (cross-reference): FDMF6704
  • Introduction date: June 23, 2006
  • Made in: Thailand
  • Compliance: Halogen Free
