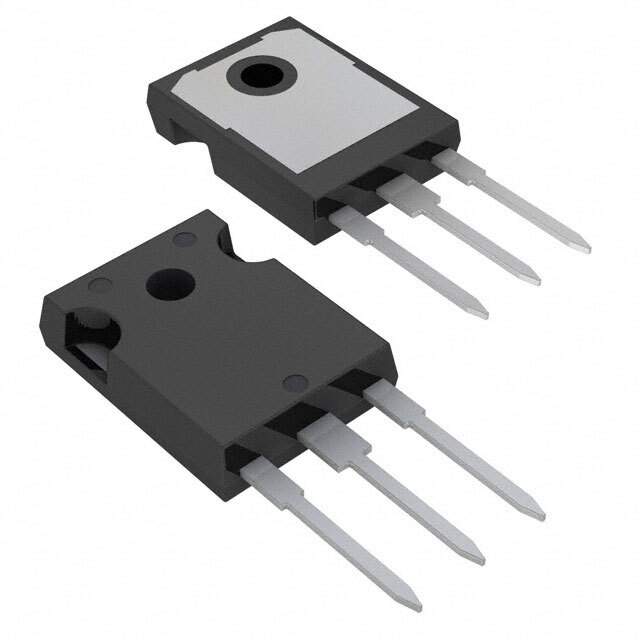

AOK20B120D1 Real Image
Same model may have multiple batches, images only for reference.

AOK20B120D1

Part No AOK20B120D1
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog IGBTs - Single
Description Low turn-off switching loss due to fast turn-off time | IGBT 1200V 20A TO-247
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Voltage - Collector Emitter Breakdown (Maximum) 1200V
Current - Collector (Ic) (Maximum) 40A
Current - Collector Pulsed (Icm) 80A
Vce(on) (Maximum) at Vge, Ic 1.8V at 15V, 20A
Maximum Power 340W
Switching Energy 940μJ (off)
Input Type Standard
Gate Charge 67.5nC
Td (on/off) at 25°C -/152ns
Test Condition 600V, 20A, 15Ohm, 15V
Temperature Range - Operating -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package TO-247-3
Supplier Device Package TO-247
Manufacturer Pack Quantity 240
MSL Level 1 (Unlimited)
Win Source Part Number 1144943-AOK20B120D1
Manufacturer Homepage www.aosmd.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AOK20B120D1 CAD Model

Description

The Alpha & Omega Semiconductor Inc. 1144943-AOK20B120D1 is a medium popularity electronic component with a balanced supply and demand status.

  • IGBT Type: Yes
  • Current - Collector Pulsed (Icm): 80A
  • Switching Energy (Off): 940μJ
  • Gate Charge: 67.5nC
  • Test Condition: 600V, 20A, 15Ohm, 15V
  • Product Type: Discrete Semiconductor Product
  • Supplier Device Package: TO-247
  • Temperature Range - Operating: -55°C ~ 175°C
  • Manufacturer Homepage: www.aosmd.com
  • Manufacturer Package: TO-247-3
  • Current - Collector (Ic) (Maximum): 40A
  • Voltage - Collector Emitter Breakdown (Maximum): 1200V
  • Manufacturer Pack Quantity: 240
  • MSL Level: 1 (Unlimited)
  • Maximum Power: 340W
  • Vce(on) (Maximum) @ Vge, Ic: 1.8V @ 15V, 20A
  • Td (on/off) @ 25°C: -/152ns
