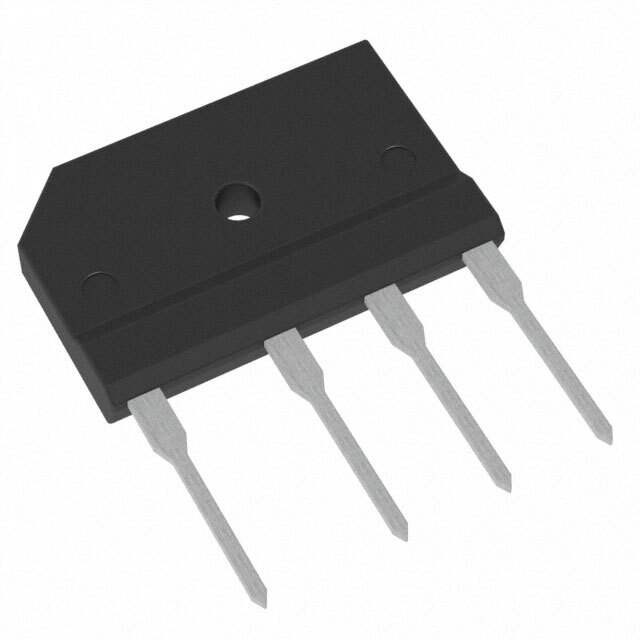

TS20P07G

Part No TS20P07G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 20A TS-6P
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Discontinued
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 20 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 20 A
Current - Reverse Leakage @ Vr 10 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, TS-6P
Supplier Device Package TS-6P
Base Product Number TS20P07
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 691505-TS20P07G
Ultra Librarian 3D Model Ultra Librarian TS20P07G CAD Model

Description

The 691505-TS20P07G is a single-phase bridge rectifier diode with a maximum forward voltage of 1.1V and an average rectified current of 20A.

  • Applications: power supplies and motor drives
  • Features: low reverse leakage current and a high peak reverse voltage, making it suitable for high voltage applications
  • Package: 4-SIP, TS-6P through-hole package
  • Series: Taiwan Semiconductor's TS20P07 series of diodes
  • Description: With its excellent electrical characteristics and robust construction, this diode is an ideal choice for demanding applications.
