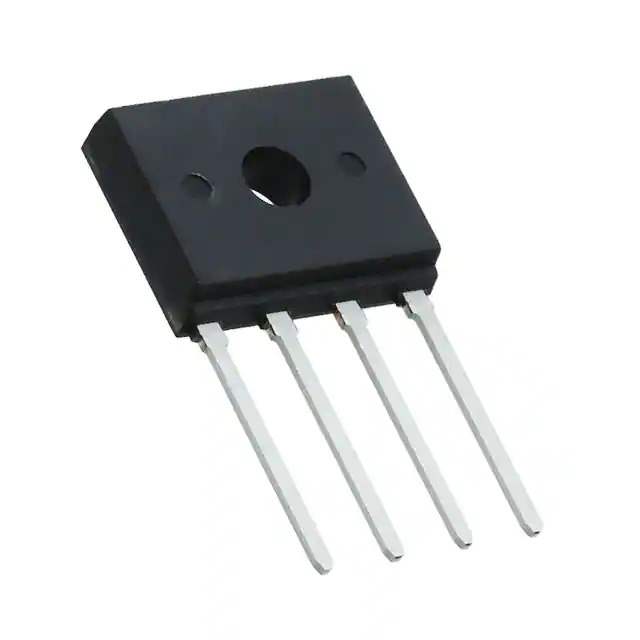

UR2KB80 Real Image
Same model may have multiple batches, images only for reference.

UR2KB80

Part No UR2KB80
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description 2A, 800V, STANDARD BRIDGE RECTIF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 1 A
Current - Reverse Leakage @ Vr 10 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-ESIP
Supplier Device Package D3K
Base Product Number UR2KB
Standard Package 1,500 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 695431-UR2KB80
Ultra Librarian 3D Model Ultra Librarian UR2KB80 CAD Model

Description

The 695431-UR2KB80 is a single-phase bridge rectifier diode designed for use in electronic circuits.

  • Type: Single-Phase Bridge Rectifier Diode
  • Average Rectified Current: 2 A
  • Forward Voltage: 1.05 V @ 1 A
  • Reverse Leakage Current: 10 μA @ 800 V
  • Peak Reverse Voltage: 800 V
  • Mounting: Through Hole
  • Package: 4-ESIP
  • Operating Temperature Range: -55°C to 150°C
  • Status: Active
  • Manufacturer: Taiwan Semiconductor
  • Standard Package: 1,500 pieces
