Same model may have multiple batches, images only for reference.

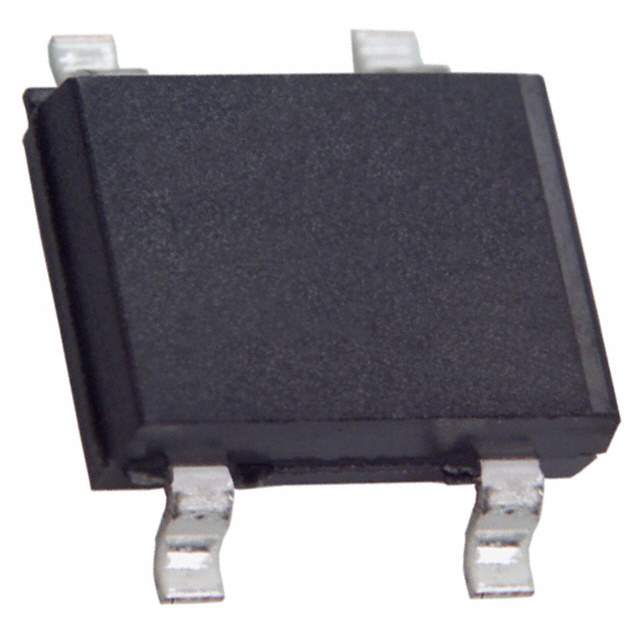

DF02S Real Image
Same model may have multiple batches, images only for reference.

DF02S

Part No DF02S
Manufacturer Fairchild/ON Semiconductor
Catalog Bridge Rectifiers
Description DIODE BRIDGE 200V 1.5A 4-SMD
Datasheet
DF02S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1.5A
Current - Reverse Leakage @ Vr 10μA @ 200V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 4-SDIP
Win Source Part Number 080422-DF02S
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian DF02S CAD Model

Description

DF02S Bridge Rectifier

The DF02S is a reliable bridge rectifier that ensures efficient AC to DC conversion. It is engineered to support various industrial and consumer electronics, optimizing power supply quality and consistency.

Applications

  • Consumer electronics
  • Automotive electronics
  • Smart home gadgets
  • Portable device chargers

Features and Benefits

  • Compact and efficient design
  • Reduced power loss for superior performance
  • Strong surge current handling
  • Reliable over a broad temperature range

The DF02S delivers energy efficiency in a compact package, making it a vital component for modern electronic innovations.
