Same model may have multiple batches, images only for reference.

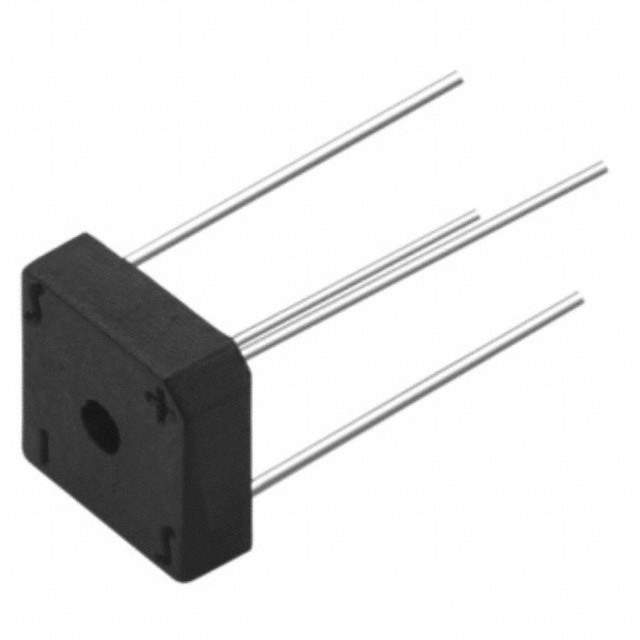

VS-KBPC810PBF Real Image
Same model may have multiple batches, images only for reference.

VS-KBPC810PBF

Part No VS-KBPC810PBF
Manufacturer Vishay
Catalog Bridge Rectifiers
Description MOD BRIDGE 1PH 8A D-72
Datasheet
VS-KBPC810PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1000V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Maximum) @ If 1V @ 3A
Current - Reverse Leakage @ Vr 10μA @ 1000V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-Square, D-72
Manufacturer Package D-72
Win Source Part Number 777985-VS-KBPC810PBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VS-KBPC810PBF CAD Model

Description

The Vishay Semiconductor Diodes Division KBPC810PBF is a single-phase standard diode. The specifications are as follows:

  • Peak Reverse Voltage: 1000V
  • Forward Voltage: 1V @ 3A
  • Average Rectified Current: 8A
  • Reverse Leakage Current: 10μA @ 1000V
  • Package: 4-square, D-72
  • Operating Temperature Range: -55°C to 150°C
  • Supply and Demand Status: Limited
