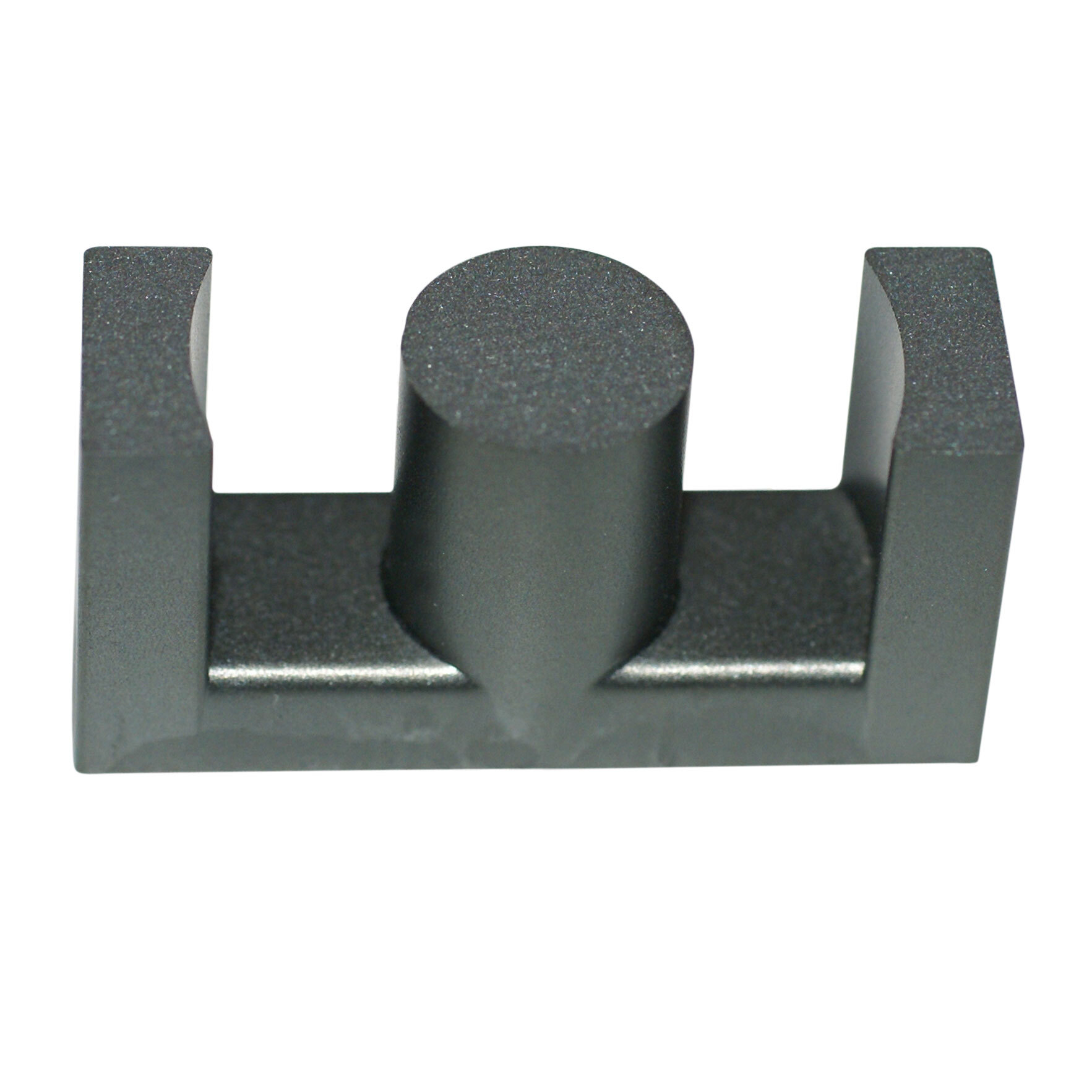

Same model may have multiple batches, images only for reference.
9495111002 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

9495111002

Part No 9495111002
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE E 95 SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type E
Material 95
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 3000
Core Factor (ΣI/A) mm⁻¹ 56.0
Effective Length (le) mm 66.5
Effective Area (Ae) mm2 119.0
Minimum Core Cross Section (Amin) mm2 112.0
Effective Magnetic Volume (Ve) mm3 7900.0
Finish Uncoated
Height 0.551" (14.00mm)
Length 1.299" (33.00mm)
Width 0.500\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528150-9495111002
Ultra Librarian 3D Model Ultra Librarian 9495111002 CAD Model
