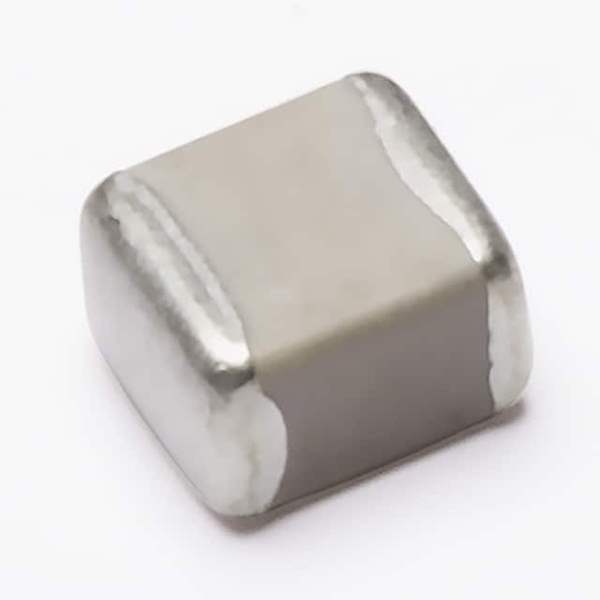

501CHB1R8BSLE EXXELIA Temex
Same model may have multiple batches, images only for reference.

501CHB1R8BSLE

Part No 501CHB1R8BSLE
Manufacturer EXXELIA Temex
Catalog Ceramic Capacitors
Description CAP CER 1.8PF 500V P100 1111 / 1.8 pF ±0.1pF 500V Ceramic Capacitor P100 1111 (2828 Metric)
Datasheet
501CHB1R8BSLE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr EXXELIA Temex
Series CH
Package Tape & Reel (TR)
Capacitance 1.8 pF
Tolerance ±0.1pF
Voltage - Rated 500V
Temperature Coefficient P100
Temperature Range - Operating -55°C ~ 150°C
Features High Q, Low Loss, Ultra Low ESR
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 1111 (2828 Metric)
Dimension 0.110" L x 0.110" W (2.80mm x 2.80mm)
Thickness (Max) 0.102" (2.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 2821-501CHB1R8BSLETR
Standard Package 1,000
Win Source Part Number 1172202-501CHB1R8BSLE
Ultra Librarian 3D Model Ultra Librarian 501CHB1R8BSLE CAD Model

Description

The CH series ceramic capacitor from EXXELIA Temex is a high-quality, low-loss, and ultra-low ESR capacitor that has a capacitance of 1.8 pF and a voltage rating of 500V.

  • Applications: It is ideal for use in RF, microwave, and high-frequency applications.
  • Mounting: surface mountable.
  • Package: 1111 (2828 Metric) package.
  • Temperature Range: -55°C to 150°C.
  • Temperature Coefficient: P100.
  • Thickness: 0.102" (2.60mm).
  • Package: tape & reel (TR).
  • Standard Package: 1,000.
  • Reliability: The CH series ceramic capacitor is a reliable and durable choice for your electronic needs.
