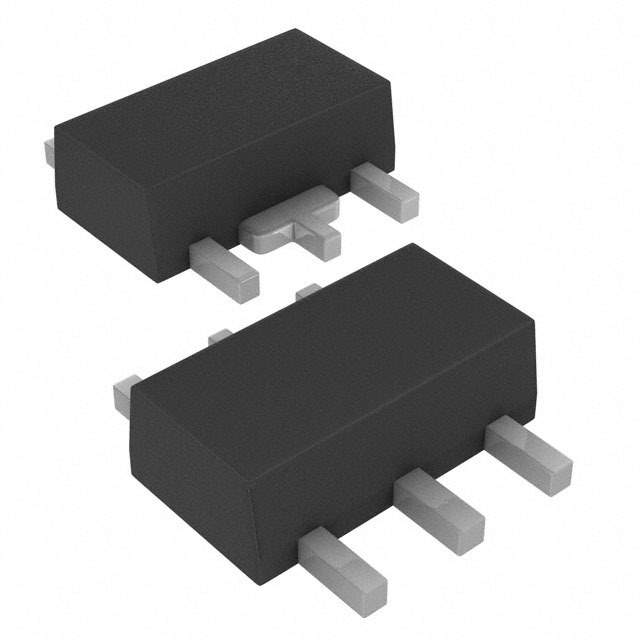

The IML8684BP-ADJ-TR, manufactured by Exar Corporation (now part of Renesas Electronics), is a high-efficiency, step-down (buck) LED driver designed for a wide range of lighting applications. It’s an adjustable constant current regulator that efficiently converts a higher voltage to a lower voltage while maintaining a constant current output, which is ideal for driving LEDs. The device features a wide input voltage range, adjustable output current, and several protection features to ensure reliable operation.

Applications

• LED Backlighting: Used in LCD displays for televisions, monitors, and mobile devices.
• General Lighting: Employed in LED-based general lighting applications like bulbs and tubes.
• Automotive Lighting: Powers LED lights in automotive applications, such as headlights, taillights, and interior lighting.
• Architectural Lighting: Used in LED-based architectural lighting systems for buildings and landscapes.
• Portable Lighting: Powers LED lights in flashlights, headlamps, and other portable lighting devices.

Features

• Adjustable Output Current: Allows the user to set the LED current for optimal brightness and efficiency.
• High Efficiency: Minimizes power loss and heat generation, resulting in longer battery life and reduced operating costs.
• Wide Input Voltage Range: Supports a broad range of input voltages, making it suitable for various power sources.
• Overvoltage Protection (OVP): Protects the LED driver and LEDs from damage due to excessive input voltage.
• Overcurrent Protection (OCP): Limits the output current to prevent damage to the LEDs and the driver itself.
• Thermal Shutdown Protection (OTP): Shuts down the driver if the temperature exceeds a safe limit, preventing overheating.
• Short-Circuit Protection (SCP): Protects the driver and LEDs from damage caused by a short circuit at the output.

Benefits

• Precise LED Current Control: Ensures consistent brightness and color for LEDs.
• Energy Efficiency: Reduces power consumption and extends battery life in portable applications.
• Reliable Operation: Comprehensive protection features ensure safe and reliable operation.
• Flexible Design: Adjustable output current allows for customization to meet specific application requirements.
• Compact Solution: Small package size allows for integration into space-constrained applications.

Additional Details

The IML8684BP-ADJ-TR operates using a constant off-time control scheme. The switching frequency can be set using an external resistor. The device is typically available in a small surface-mount package. External components, such as inductors and capacitors, are required to complete the LED driver circuit. The adjustable output current is typically set using an external resistor connected to the feedback pin. It is RoHS compliant. This LED driver provides a robust and efficient solution for a variety of LED lighting applications, providing excellent performance and protection features.
