Same model may have multiple batches, images only for reference.

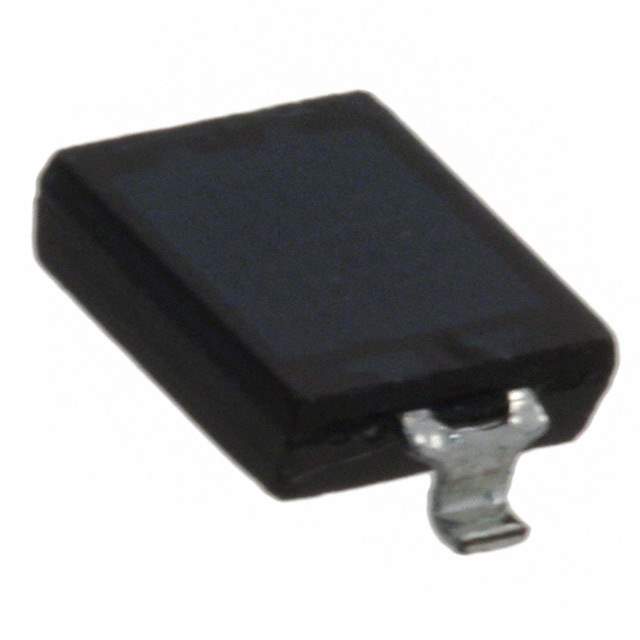

PD70-01B/TR10 Real Image
Same model may have multiple batches, images only for reference.

PD70-01B/TR10

Part No PD70-01B/TR10
Manufacturer Everlight Electronics Co Ltd
Catalog Optical Sensors - Photodiodes
Description Silicon Planar PIN Photodiode
Datasheet
PD70-01B/TR10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Everlight Electronics Co Ltd
Packaging Reel - TR
Wavelength 940nm
Spectral Range 730nm ~ 1100nm
Diode Type PIN
Response Time 50ns
Voltage - DC Reverse (Vr) (Maximum) 32V
Current - Dark (Typ) 5nA
Operating Temperature Range -25°C ~ 85°C
Mounting SMD
Package 2-SMD, Z-Bend
Win Source Part Number 1236556-PD70-01B/TR10
Manufacturer Homepage www.everlight.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PD70-01B/TR10 CAD Model

Description

The Everlight Electronics Co Ltd PIN diode is a high-speed electronic component used in various applications.

  • Response Time: 50ns
  • Applications: sensors and transducers
  • Package: 2-SMD, Z-Bend
  • Operating Temperature: -25°C to 85°C
  • Voltage-DC Reverse (Vr): 32V
  • Spectral Range: 730nm to 1100nm
  • Current-Dark: 5nA
