Same model may have multiple batches, images only for reference.

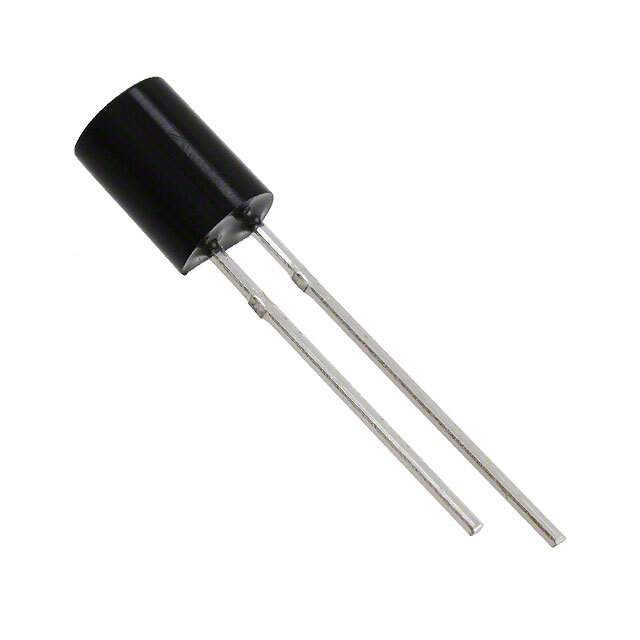

PD438B/S46 Real Image
Same model may have multiple batches, images only for reference.

PD438B/S46

Part No PD438B/S46
Manufacturer Everlight Electronics Co Ltd
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE PIN IR 4.8MM CYL BK
Datasheet
PD438B/S46 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Everlight Electronics Co Ltd
Packaging Bulk
Status Active
Wavelength 940nm
Spectral Range 840nm to 1100nm
Diode Type PIN
Response Time 50ns
Voltage - DC Reverse (Vr) (Max) 170V
Current - Dark (Typ) 5nA
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension TO-226-2, TO-92-2 Long Body
Win Source Part Number 1087115-PD438B/S46
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PD438B/S46 CAD Model

Description

The PIN diode from Everlight Electronics Co Ltd is a high-quality electronic component that is ideal for use in transducers and sensors.

  • Maximum DC Reverse Voltage: 170V
  • Response Time: 50ns
  • Mounting: Through-Hole
  • Dimension: TO-226-2, TO-92-2 long body
  • Spectral Range: 840nm to 1100nm
  • Dark Current: 5nA
  • Operating Temperature Range: -40°C to 85°C
  • Packaging: Bulk
  • Popularity Rating: Medium
