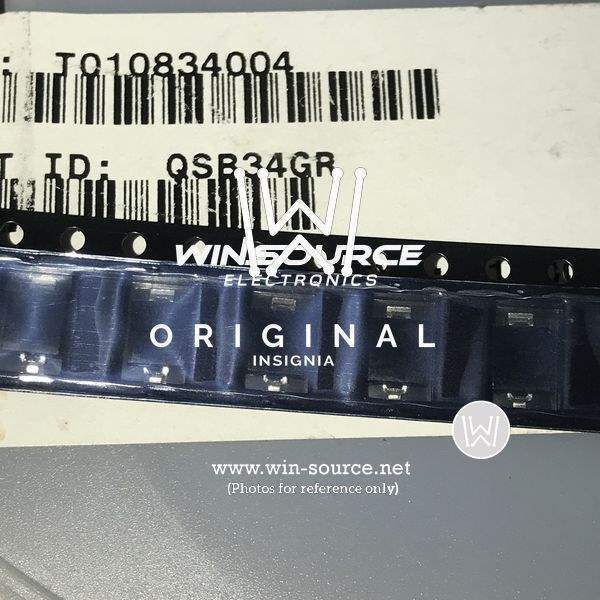

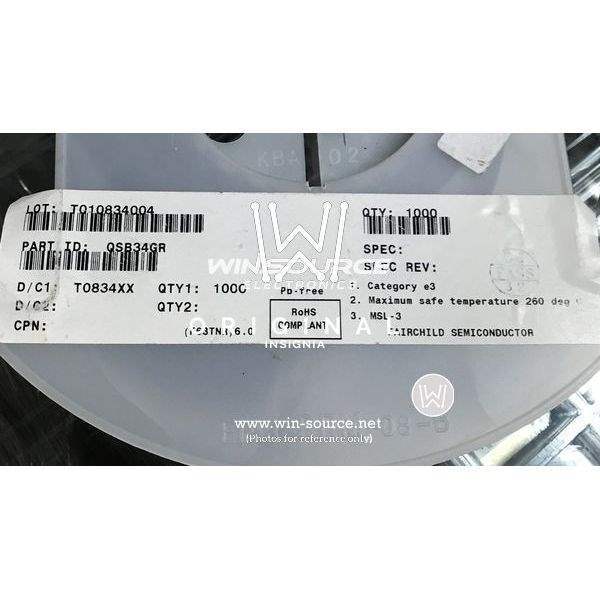

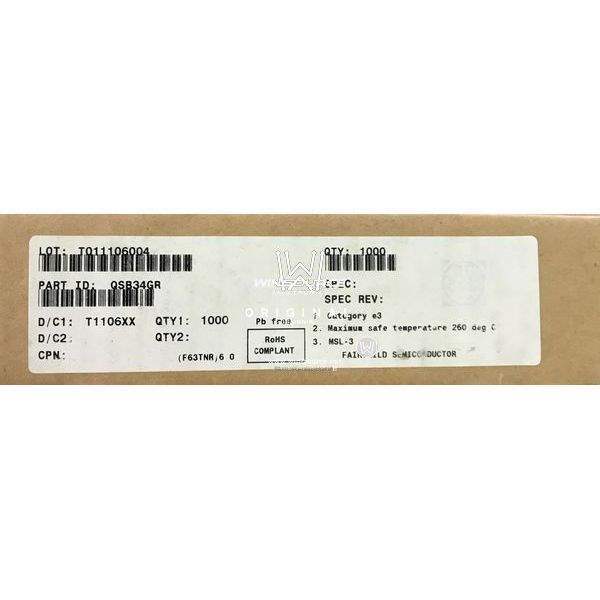

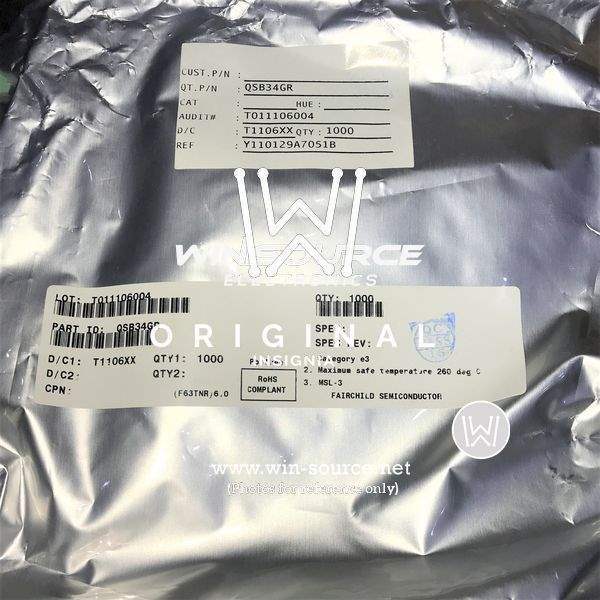

QSB34GR Real Image QSB34GR real image QSB34GR label picture QSB34GR label picture 2 QSB34GR label picture 3
QSB34GR Real Image QSB34GR real image QSB34GR label picture QSB34GR label picture 2 QSB34GR label picture 3
Same model may have multiple batches, images only for reference.

QSB34GR

Part No QSB34GR
Manufacturer Fairchild/ON Semiconductor
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE IR PIN GW 2-PLCC
Datasheet
QSB34GR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Wavelength 940nm
Spectral Range 730nm to 1100nm
Diode Type PIN
Response Time 50ns
Voltage - DC Reverse (Vr) (Max) 32V
Current - Dark (Typ) 30nA
Active Area 6.5mm2
Viewing Angle 120°
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Dimension 2-SMD, Gull Wing
Win Source Part Number 027063-QSB34GR
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian QSB34GR CAD Model

Description

The Fairchild/ON Semiconductor QSB34GR is a PIN diode with a maximum reverse voltage of 32V and a viewing angle of 120°.

  • Spectral Range: 730nm to 1100nm
  • Mounting: SMD (SMT) technology
  • Dark Current: 30nA
  • Active Area: 6.5mm2
  • Temperature Range: -25°C to 85°C
  • Packaging: reel
  • Application: Sensors and Transducers
