Same model may have multiple batches, images only for reference.

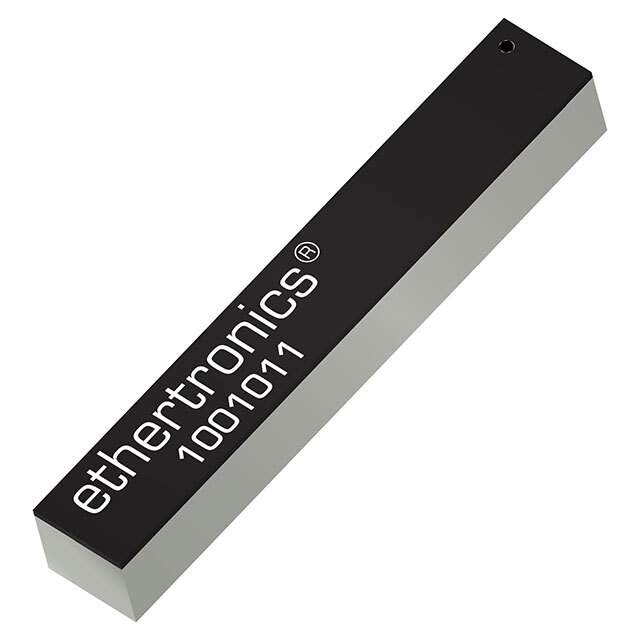

1001011 Real Image
Same model may have multiple batches, images only for reference.

1001011

Part No 1001011
Manufacturer Ethertronics/AVX
Catalog RF Antennas
Description RF ANT 1.561GHZ/1.575GHZ CHIP
Datasheet
1001011 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Ethertronics/AVX
Series Prestta™
Package Tape & Reel
Product Status Active
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.561GHz, 1.575GHz
Frequency Range 1.57GHz ~ 1.58GHz
Antenna Type Chip
Number of Bands 2
VSWR 2
Gain -1.8dBi
Power - Max 2 W
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.130" (3.30mm)
Applications GPS
Standard Package 2,250 pcs
MSL Level 1 (Unlimited)
ECCN 7A994
HTSUS 8529.10.4040
Win Source Part Number 853533-1001011
Ultra Librarian 3D Model Ultra Librarian 1001011 CAD Model

Description

The 853533-1001011 is a Prestta™ RF antenna manufactured by Ethertronics/AVX.

  • Category: RF and Wireless - RF Antennas
  • Type: Chip antenna
  • Application: GPS
  • Package: Tape and reel
  • Maximum Power: 2W
  • Frequency Range: 1.57GHz to 1.58GHz
  • Height: 0.130 inches
  • Frequency Group: UHF (1GHz to 2GHz)
  • Bands: Two
  • VSWR: 2
  • Gain: -1.8dBi
  • Mounting Type: Surface mountable
  • ECCN: 7A994
  • Status: Active
