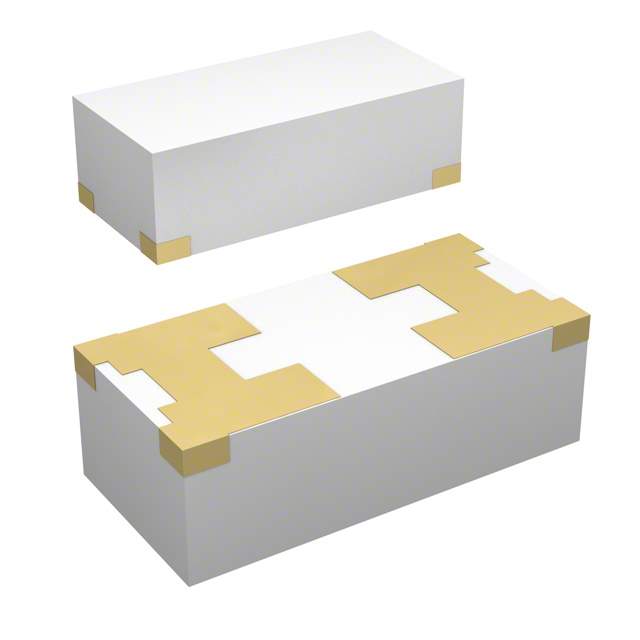

M310220 Real Image
Same model may have multiple batches, images only for reference.

M310220

Part No M310220
Manufacturer Ethertronics/AVX
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD / 2.4GHz Bluetooth, Wi-Fi, WLAN, Zigbee™ Chip RF Antenna 2.4GHz ~ 2.5GHz -1.3dB Solder Surface Mount
Datasheet
M310220 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Ethertronics/AVX
Series Savvi™
Package Tape & Reel
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 1.02
Gain -1.3dB
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.043" (1.08mm)
Applications Bluetooth, Wi-Fi, WLAN, Zigbee™
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8517.79.0000
Other Names 939-1065-1,939-1065-2,939-1065-6,M310220-1K
Standard Package 1,000
Win Source Part Number 1122310-M310220
Ultra Librarian 3D Model Ultra Librarian M310220 CAD Model

Description

The Savvi™ series chip antenna from Ethertronics/AVX is an SMD (SMT) RF antenna.

  • Frequency Range: 2.4GHz ~ 2.5GHz
  • Applications: Bluetooth, Wi-Fi, WLAN, and Zigbee™
  • Height: 0.043" (1.08mm)
  • Gain: -1.3dB
  • Antenna Type: Chip
  • VSWR: 1.02
  • Frequency Group: UHF (2GHz ~ 3GHz)
  • Frequency (Center/Band): 2.4GHz
  • Termination: Solder
  • Packaging: Tape & Reel
  • Standard Package: 1,000
  • MSL: 1 (unlimited)
  • HTSUS: 8517.79.0000
