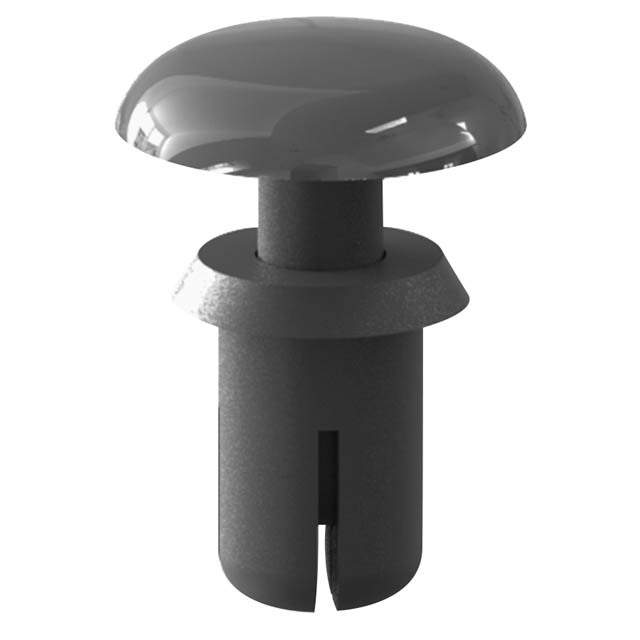

SRP-3045 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Hardware, Fasteners, Accessories>Rivets
Mfr Essentra Components
Series Richco, SRP
Package Bulk
Type Snap Rivet
Rivet Diameter 0.120" (3.05mm)
Rivet Length 0.180" (4.57mm)
Head Diameter 0.250" (6.35mm) 1/4"
Head Height 0.060" (1.52mm)
Hole Diameter 0.124" (3.15mm)
Grip Range 0.059" ~ 0.098" (1.50mm ~ 2.49mm)
Features Heat Resistant
Color Black
Material Polysulfone
Other Names SRP-3045R,61100236,SRP-3045,SRP3045B,RPC2113,SRP3045
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 3926.90.9985
Win Source Part Number 1275049-SRP-3045
Ultra Librarian 3D Model Ultra Librarian SRP-3045 CAD Model

Description

This electronic component is a snap rivet from the Richco SRP series manufactured by Essentra Components.

  • Win Source Part Number: 1275049-SRP-3045
  • Material: Polysulfone
  • Rivet Diameter: 0.120" (3.05mm)
  • Rivet Length: 0.180" (4.57mm)
  • Grip Range: 0.059" ~ 0.098" (1.50mm ~ 2.49mm)
  • Feature: Heat resistant
