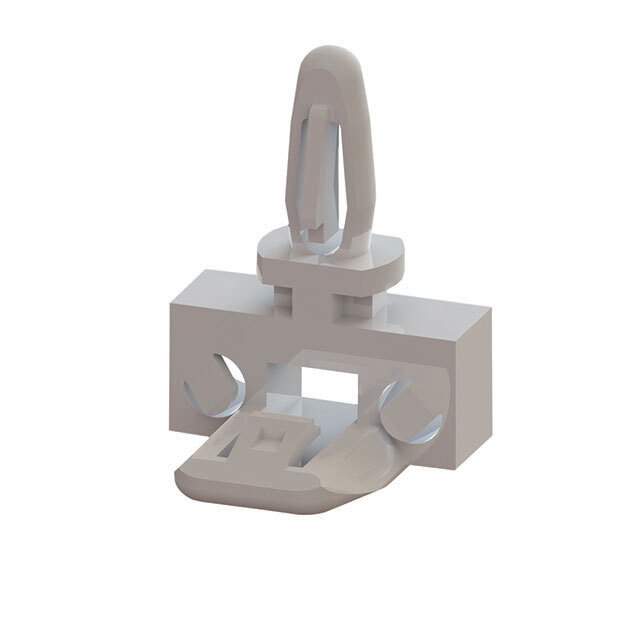

SMLCBS-5-01 Real Image
Same model may have multiple batches, images only for reference.

SMLCBS-5-01

Part No SMLCBS-5-01
Manufacturer Essentra Components
Catalog Board Supports
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Hardware, Fasteners, Accessories>Board Supports
Mfr Essentra Components
Series Richco, SMLCBS
Package Bulk
Holding Type Snap Lock
Mounting Type Snap Lock
Between Board Height 0.313" (7.95mm) 5/16"
Length - Overall 0.714" (18.14mm)
Support Hole Diameter 0.156" (3.96mm) 5/32"
Support Panel Thickness 0.062" (1.57mm) 1/16"
Features Removable
Material Nylon
Base Product Number SMLCBS
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 3926.90.9985
Win Source Part Number 1275358-SMLCBS-5-01
Ultra Librarian 3D Model Ultra Librarian SMLCBS-5-01 CAD Model

Description

The Essentra Components Richco SMLCBS Series Board Support is a high-quality component designed for use in a variety of electronic devices.

  • Manufacturer: Essentra Components Richco
  • Product: SMLCBS Series Board Support
  • Length: 0.714" (18.14mm)
  • Support Panel Thickness: 0.062" (1.57mm)
  • Temperature Range: -40°C to 85°C
  • Holding Type: snap lock
