Same model may have multiple batches, images only for reference.

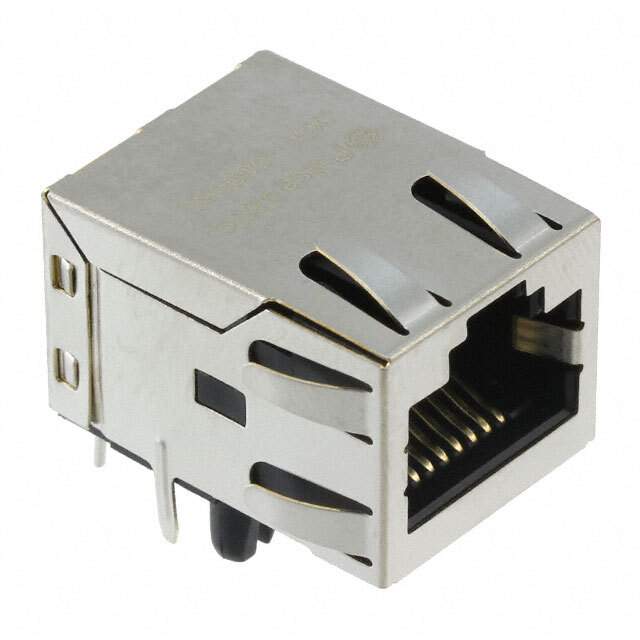

JXD1-0005NL Real Image
Same model may have multiple batches, images only for reference.

JXD1-0005NL

Part No JXD1-0005NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB / 1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Datasheet
JXD1-0005NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.543" (13.80mm)
LED Color Does Not Contain LED
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Up
Contact Material Copper Alloy
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Polyamide (PA66), Nylon 6/6
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number JXD1-0005NL-ND,553-3268,-JXD1-0005NL
Standard Package 50
Win Source Part Number 1333926-JXD1-0005NL
Ultra Librarian 3D Model Ultra Librarian JXD1-0005NL CAD Model

Description

The Pulse Electronics JXD1-0005NL is a shielded RJ45 modular connector jack with magnetics.

  • Orientation: 90° angle (right)
  • Mounting: Through hole
  • Ports: One
  • Cores per Jack: Four
  • Application: 10/100 Base-TX and AutoMDIX
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Shielding: EMI finger
  • Height Above Board: 0.543" (13.80mm)
  • Housing Material: Polyamide (PA66), nylon 6/6
  • Shield: Brass
  • Operating Temperature Range: -40°C to 85°C
  • Packaging: Tray packaging
  • Compliance: RoHS compliant
  • ECCN: EAR99
