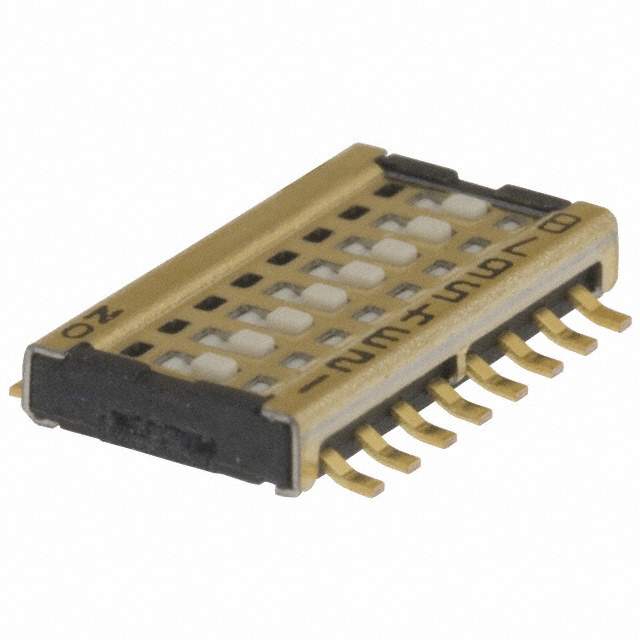

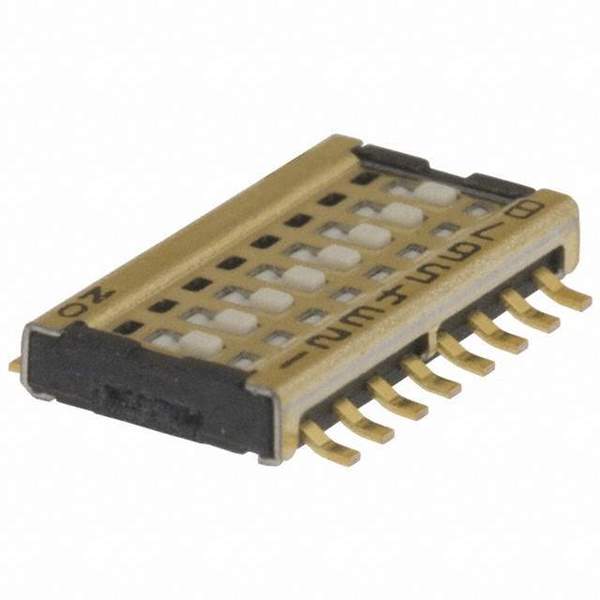

CVS-08TB-1 Real Image
Same model may have multiple batches, images only for reference.

CVS-08TB-1

Part No CVS-08TB-1
Manufacturer Nidec Copal Electronics
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 6V / Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC
Datasheet
CVS-08TB-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Nidec Copal Electronics
Series CVS
Package Tape & Reel (TR)
Circuit SPST
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Stainless Steel
Contact Finish Gold
Height Above Board 0.057" (1.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.039" (1.00mm)
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.354" (9.00mm)
Electrical Life 1,000 Cycles
Base Product Number CVS-08T
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Standard Package 500
Win Source Part Number 1053737-CVS-08TB-1
Ultra Librarian 3D Model Ultra Librarian CVS-08TB-1 CAD Model

Description

The Tyco Electronics is a DIP switch that comes with eight positions and a pitch of 0.039 inches. The product is of the CVS series and has a gull-wing termination style. The contact finish is gold, and the contact material is stainless steel. The product is available in tape and reel packaging. The product is manufactured by Nidec Copal Electronics and has a Win Source Part Number of 1053737-CVS-08TB-1. The product is SPST circuit and has a slide actuator type. The product is suitable for use in various applications in the computer equipment industry.
