Same model may have multiple batches, images only for reference.

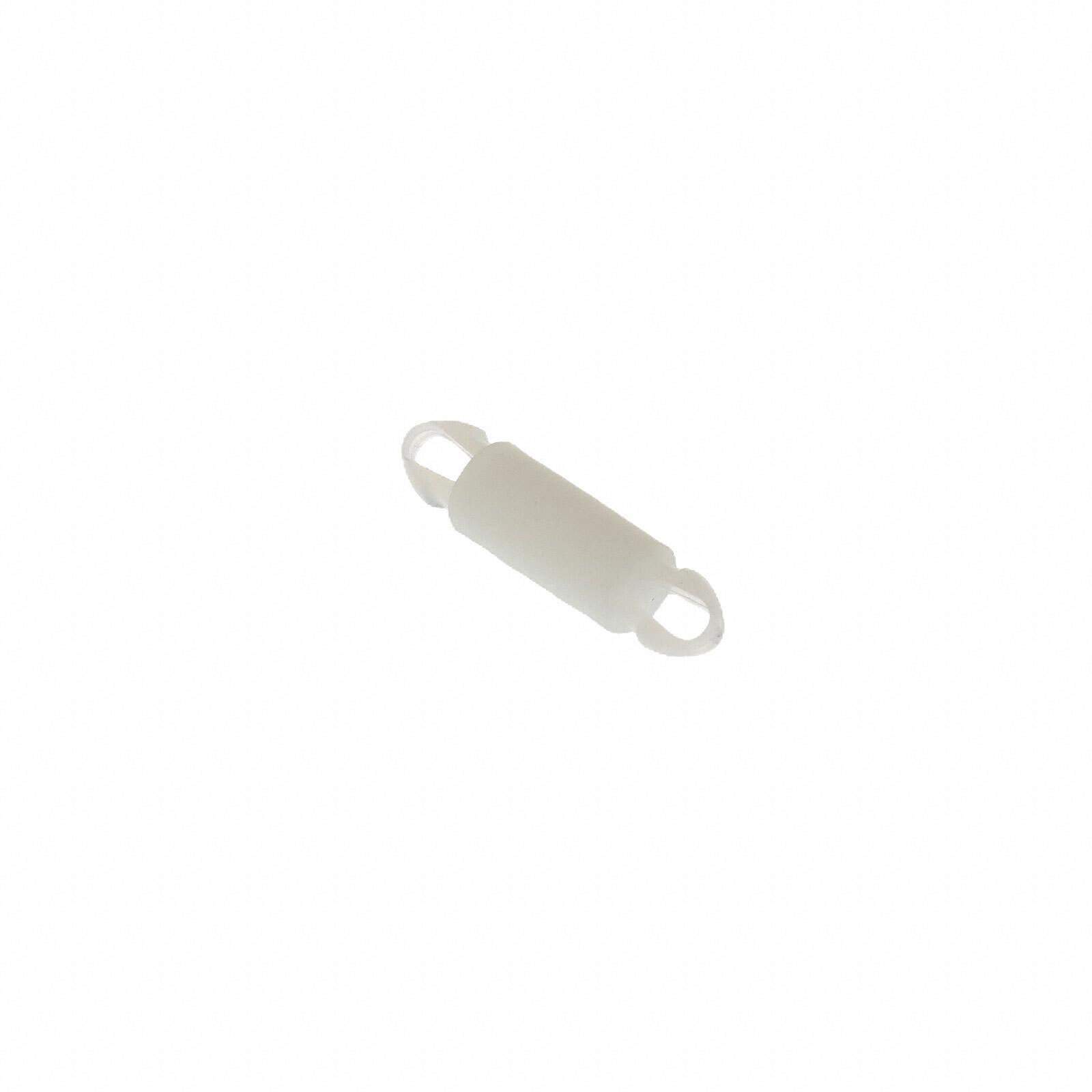

MDLSP2-10M-01 Real Image
Same model may have multiple batches, images only for reference.

MDLSP2-10M-01

Part No MDLSP2-10M-01
Manufacturer Essentra Components
Catalog Board Supports
Description BRD SPT SNAP LOCK NYLON 10MM
Datasheet
MDLSP2-10M-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Hardware, Fasteners, Accessories
Manufacturer Essentra Components
Status Active
Holding Type Snap Lock
Mounting Snap Lock
Between Board Height 0.394" (10.00mm)
Length - Overall 0.760" (19.30mm)
Support Hole Diameter 0.138" (3.50mm)
Support Panel Thickness 0.065" (1.65mm)
Mounting Hole Diameter 0.138" (3.50mm)
Mounting Panel Thickness 0.065" (1.65mm)
Material Nylon
Win Source Part Number 208245-MDLSP2-10M-01
Ultra Librarian 3D Model Ultra Librarian MDLSP2-10M-01 CAD Model

Description

The Essentra Components snap lock mounting is a reliable and durable solution for hardware, fasteners, and accessories.

  • Material: It is constructed with nylon material and is designed with snap lock mounting, making it easy to install and remove.
  • Mounting Hole Diameter: 0.138 inches (3.50mm)
  • Support Hole Diameter: 0.138 inches (3.50mm)
  • Between Board Height: 0.394 inches (10.00mm)
  • Mounting Panel Thickness: 0.065 inches (1.65mm)
  • Overall Length: 0.760 inches (19.30mm), making it suitable for various applications.
  • Win Source Part Number: 208245-MDLSP2-10M-01
