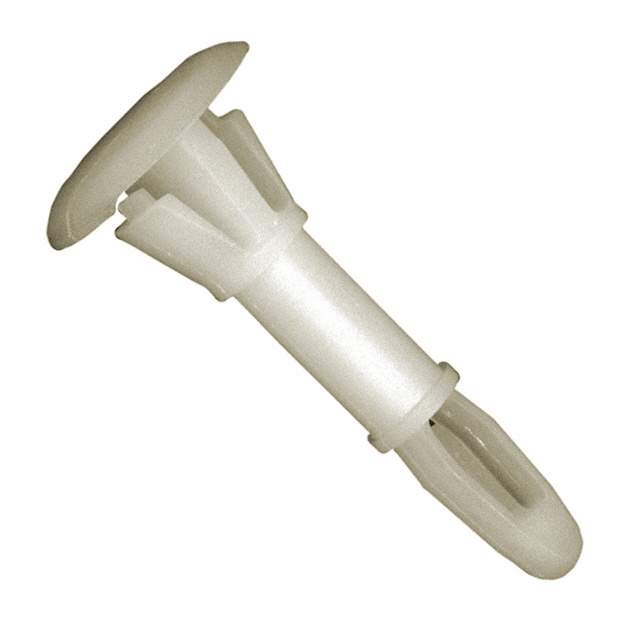

RLCBSR1-10-01 Real Image
Same model may have multiple batches, images only for reference.

RLCBSR1-10-01

Part No RLCBSR1-10-01
Manufacturer Essentra Components
Catalog Board Supports
Description BRD SPT SNAP LOCK NYLON 5/8"
Datasheet
RLCBSR1-10-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Hardware, Fasteners, Accessories
Manufacturer Essentra Components
Status Active
Holding Type Snap Lock
Mounting Snap Lock
Between Board Height 0.625" (15.88mm) 5/8"
Length - Overall 1.167" (29.65mm)
Support Hole Diameter 0.157" (3.99mm)
Support Panel Thickness 0.062" (1.57mm) 1/16"
Mounting Hole Diameter 0.250" (6.35mm) 1/4"
Mounting Panel Thickness 0.059" to 0.065" (1.50mm to 1.65mm)
Features Locking, Reverse Mounting
Material Nylon
Win Source Part Number 1101766-RLCBSR1-10-01
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RLCBSR1-10-01 CAD Model

Description

The Essentra Components RLCBSR1-10-01 is a locking and reverse mounting snap lock board support designed to snap lock onto a mounting hole diameter of 0.250 inches.

  • Mounting Hole Diameter: 0.250 inches
  • Overall Length: 1.167 inches
  • Between Board Height: 0.625 inches
  • Support Hole Diameter: 0.157 inches
  • Support Panel Thickness: 0.062 inches
  • Material: Nylon
