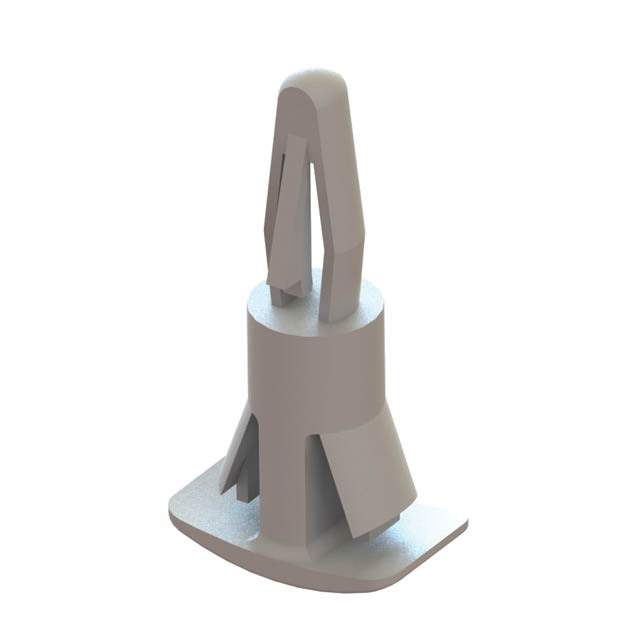

RLCBSC-8-01 Real Image
Same model may have multiple batches, images only for reference.

RLCBSC-8-01

Part No RLCBSC-8-01
Manufacturer Essentra Components
Catalog Board Supports
Description BRD SPT SNAP LOCK NYLON 8MM
Datasheet
RLCBSC-8-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Hardware, Fasteners, Accessories
Manufacturer Essentra Components
Series RLCBSC
Holding Type Snap Lock
Mounting Snap Lock
Between Board Height 0.315" (8.00mm)
Support Hole Diameter 0.126" (3.20mm)
Support Panel Thickness 0.063" (1.60mm)
Mounting Hole Diameter 0.213" (5.40mm)
Mounting Panel Thickness 0.031" (0.80mm)
Features Locking, Reverse Mounting
Material Nylon
Win Source Part Number 793973-RLCBSC-8-01
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RLCBSC-8-01 CAD Model

Description

The Essentra Components 793973-RLCBSC-8-01 is a locking, reverse mounting snap lock that can be used for hardware, fasteners, and accessories.

  • Material: Nylon
  • Mounting Hole Diameter: 0.213" (5.40mm)
  • Holding Type: Snap Lock
  • Support Hole Diameter: 0.126" (3.20mm)
  • Between Board Height: 0.315" (8.00mm)
  • Support Panel Thickness: 0.063" (1.60mm)
  • Mounting Panel Thickness: 0.031" (0.80mm)
