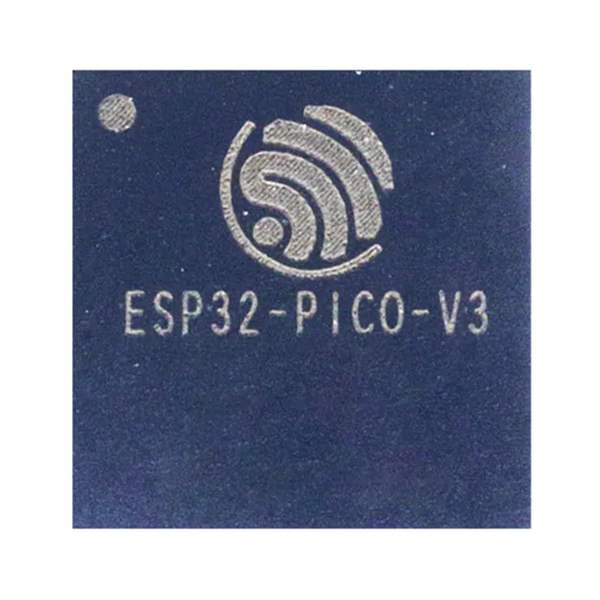

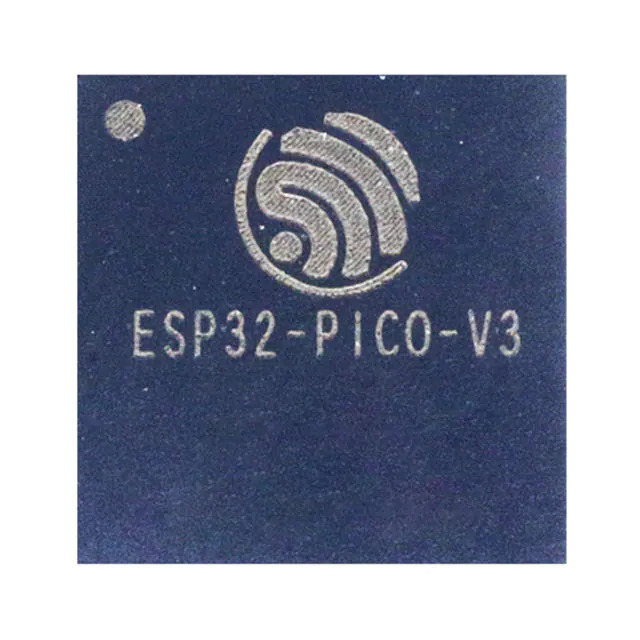

ESP32-PICO-V3 Espressif
Same model may have multiple batches, images only for reference.

ESP32-PICO-V3

Part No ESP32-PICO-V3
Manufacturer Espressif
Catalog RF Transceiver Modules
Description RF TXRX MOD WIFI SURFACE MOUNT
Datasheet
ESP32-PICO-V3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Espressif Systems
Series ESP32
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth 4.2
Modulation 8DPSK, DSSS, DQPSK, OFDM
Frequency 2.412GHz ~ 2.484GHz
Data Rate 150Mbps
Power - Output 20.5dBm
Sensitivity -97dBm
Serial Interfaces ADC, I²C, I²S, SDIO, SPI, PWM, UART
Antenna Type Antenna Not Included, I-PEX
Utilized IC / Part -
Memory Size 448kB ROM, 520kB SRAM
Voltage - Supply 3V ~ 3.6V
Current - Receiving 95mA ~ 100mA
Current - Transmitting 130mA ~ 240mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 48-TFQFN Exposed Pad
Base Product Number ESP32
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1368590-ESP32-PICO-V3
Ultra Librarian 3D Model Ultra Librarian ESP32-PICO-V3 CAD Model

Description

The ESP32-PICO-V3 is a compact and feature-rich RF transceiver module designed by Espressif Systems.

  • Frequency: 2.412GHz ~ 2.484GHz
  • Protocols: Bluetooth, WiFi
  • Package / Case: 48-TFQFN Exposed Pad
  • Mounting Type: Surface Mount
  • Voltage - Supply: 3V ~ 3.6V
  • ROM Size: 448kB
  • RAM Size: 520kB
  • Data Rate: 150Mbps
  • Serial Interfaces: ADC, I²C, I²S, SDIO, SPI, PWM, UART
  • Power - Output: 20.5dBm
  • Sensitivity: -97dBm
