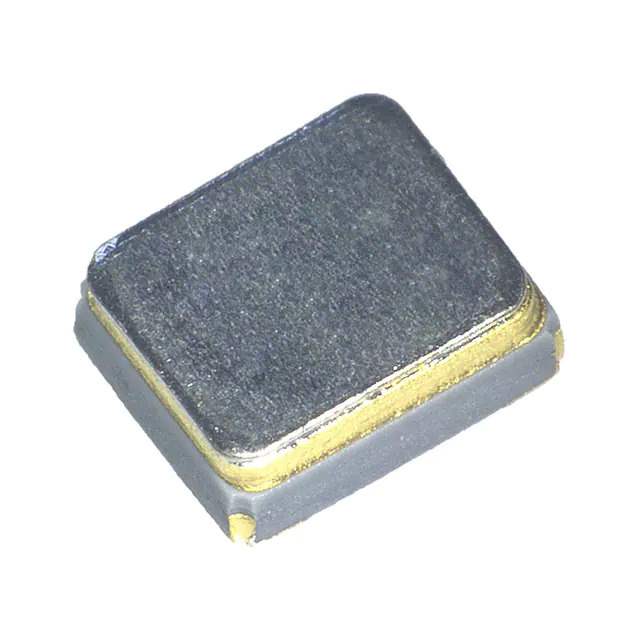

TG2016SMN 27.0000M-MCGNNM3 Real Image
Same model may have multiple batches, images only for reference.

TG2016SMN 27.0000M-MCGNNM3

Part No TG2016SMN 27.0000M-MCGNNM3
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC TCXO 27.0000MHZ CSWV / 27 MHz TCXO Clipped Sine Wave Oscillator 2.8V ~ 3.3V 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr EPSON
Series TG2016SMN
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 27 MHz
Output Clipped Sine Wave
Voltage - Supply 2.8V ~ 3.3V
Frequency Stability ±500ppb
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.8mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.029" (0.73mm)
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1351036-TG2016SMN 27.0000M-MCGNNM3
Ultra Librarian 3D Model Ultra Librarian TG2016SMN 27.0000M-MCGNNM3 CAD Model

Description

This electronic component is a TCXO oscillator that is part of the TG2016SMN series.

  • Part Number: 1351036-TG2016SMN 27.0000M-MCGNNM3
  • Mounting Type: Surface Mount
  • Frequency: 27 MHz
  • Frequency Stability: ±500ppb
  • Output: Clipped Sine Wave
  • Voltage Supply: 2.8V ~ 3.3V
  • Temperature Range: -40°C ~ 85°C
