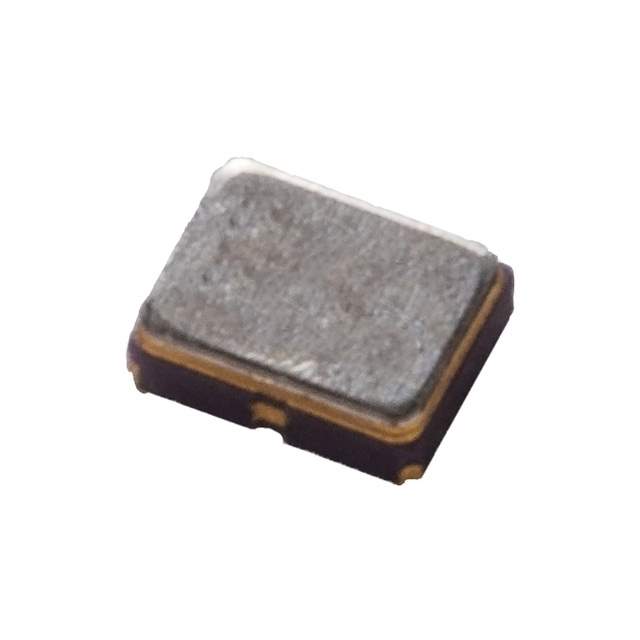

The SG-8018CG 20.000000 MHZ TJHPA is a programmable crystal oscillator manufactured by Epson. It generates a stable clock signal at a frequency of 20.000000 MHz. These oscillators are highly versatile and used in various electronic applications requiring a precise and reliable timing source.

Applications:

• Microcontrollers and Microprocessors: Provides a stable clock signal for timing and synchronization.
• Real-Time Clocks (RTC): Used as a timing reference for accurate timekeeping.
• Communication Systems: Provides a stable clock for data transmission and reception in networks and communication devices.
• Audio and Video Equipment: Used for timing and synchronization in audio and video processing circuits.
• Industrial Control Systems: Provides a precise timing source for control and automation applications.
• Test and Measurement Equipment: Used as a reference clock in frequency counters, signal generators, and other test equipment.

Features:

• Programmable Frequency: Allows the output frequency to be programmed to specific values.
• High Frequency Stability: Provides a stable and accurate clock signal over a wide temperature range.
• Low Jitter: Minimizes timing errors and ensures reliable performance.
• Wide Operating Voltage Range: Operates over a wide range of supply voltages.
• Small Package Size: Compact size allows for easy integration into various applications.
• Low Power Consumption: Consumes minimal power, making it suitable for battery-powered devices.
• CMOS Output: Compatible with standard CMOS logic circuits.

Benefits:

• Precise Timing: Provides an accurate and stable clock signal for reliable system operation.
• Versatile: Can be used in a wide range of applications.
• Easy to Use: Simple to integrate into existing circuits.
• Long Lifespan: Provides a long and reliable operating life.
• Cost-Effective: Provides a cost-effective solution for clock generation needs.

Additional Details:

The SG-8018CG oscillator typically operates at a supply voltage of 1.8V, 2.5V, or 3.3V. The frequency stability is typically specified in parts per million (ppm) over a specified temperature range. The operating temperature range is typically from -40°C to +85°C. The oscillator is available in a variety of package sizes, including surface-mount packages. The TJHPA likely refers to a specific configuration or specification related to temperature range, tolerance, or other parameters. The output waveform is typically a square wave with a 50% duty cycle. The startup time is typically very short, allowing the oscillator to quickly provide a stable clock signal. The device is RoHS compliant.
