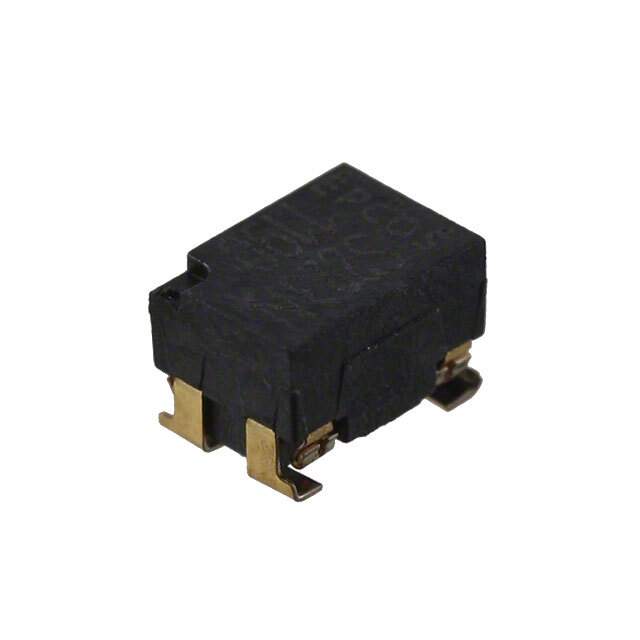

B82799S223N1 Real Image
Same model may have multiple batches, images only for reference.

B82799S223N1

Part No B82799S223N1
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 22UH 250MA 2LN SMD AEC-Q200
Datasheet
B82799S223N1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Series B82799
Packaging Reel package
Part Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 22μH @ 100kHz
Current Rating (Maximum) 250mA
DC Resistance (DCR) (Maximum) 170 mOhm (Typ)
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Operating Temperature Range -55°C ~ 150°C
Ratings AEC-Q200
Mounting SMD
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Maximum) 0.126" (3.20mm)
Package Horizontal, 4 L-Lead
Win Source Part Number 769587-B82799S223N1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82799S223N1 CAD Model

Description

The B82799S223N1 is a signal line filter manufactured by EPCOS (TDK).

  • Current Rating: 250mA
  • Mounting: SMD
  • Package: Horizontal, 4 L-Lead
  • Voltage Rating: 42V (AC), 80V (DC)
  • Rating: AEC-Q200
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
