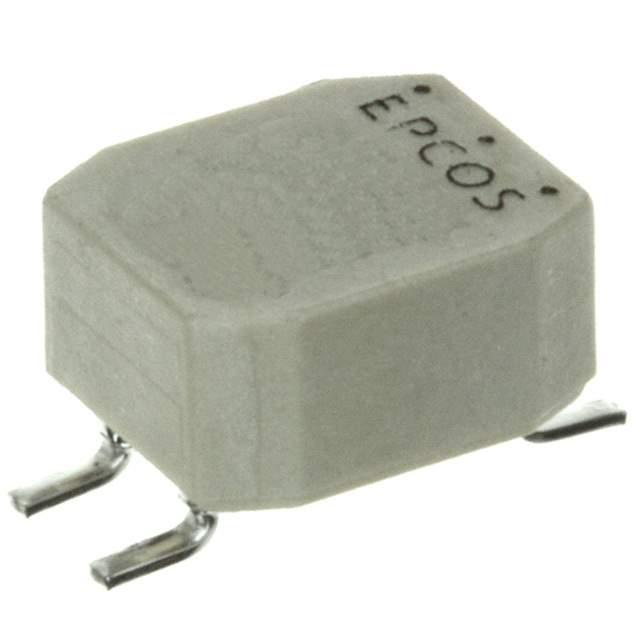

B82793C253N201

Part No B82793C253N201
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description Common Mode Choke Surface Mount Signal Line 800mA 2 Lines 110 mOhm (Typ) -40°C ~ 125°C
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters
Family Common Mode Chokes
Manufacturer EPCOS (TDK)
Series B82793
Packaging Reel(TR)
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 25μH @ 100kHz
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 110 mOhm (Typ)
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Operating Temperature Range -40°C ~ 125°C
Ratings AEC-Q200
Mounting Style SMD/SMT
Size / Dimension 0.280" L x 0.236" W (7.10mm x 6.00mm)
Height (Max) 0.189" (4.80mm)
Package Horizontal, 4 Gull Wing
Win Source Part Number 010701-B82793C253N201
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B82793C253N201 CAD Model

Description

Description

The B82793C253N201 is a versatile and effective solution designed to address electromagnetic noise in a wide range of electronic applications. Its advanced engineering ensures reduced downtime and enhanced component protection.

Features and Benefits

  • Highly Versatile: Suitable for various noise suppression applications.
  • Prolonged Durability: Built to last, minimizing maintenance demands.
  • Energy Efficient: Provides exceptional suppression with low power usage.
  • Minimal Footprint: Maintains functionality while saving space.

Applications

  • Renewable Energy Systems
  • Networking Equipment
  • Data Processing Centers
  • Aerospace Electronics

Additional Details

With its sophisticated design, the B82793C253N201 stands out as an efficient solution for maintaining the fidelity and performance of electronic circuits facing electromagnetic interference challenges.
