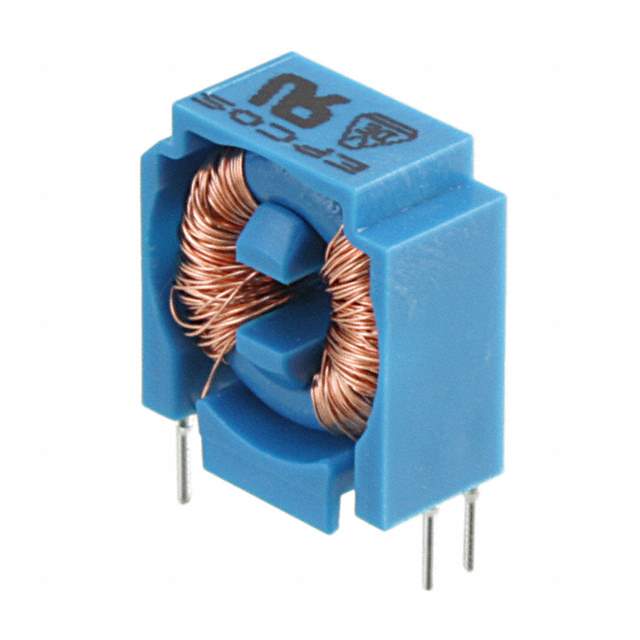

B82791H2351N001 Real Image1 B82791H2351N001 Real Image2
Same model may have multiple batches, images only for reference.
B82791H2351N001 Real Image1 B82791H2351N001 Real Image2
B82791H2351N001 Real Image1 B82791H2351N001 Real Image2
Same model may have multiple batches, images only for reference.

B82791H2351N001

Part No B82791H2351N001
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 22MH 350MA 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Cut Reel
Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 22mH @ 10kHz
Current Rating (Max) 350mA
DC Resistance (DCR) (Max) 1.9 Ohm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C to 125°C
Approvals ENEC, UR, VDE
Mounting Through Hole
Height (Max) 0.693" (17.60mm)
Dimension Vertical, 4 PC Pin
Win Source Part Number 200287-B82791H2351N001
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B82791H2351N001 CAD Model

Description

Product: B82791H2351N001

The B82791H2351N001 is designed for high-efficiency EMI suppression, supporting better performance across diverse electronic platforms.

Applications:

  • Embedded in power electronics
  • Effective for digital communication systems
  • Used in automotive electronic controls

Features and Benefits:

  • High attenuation rates for efficient EMI control
  • Compact and lightweight for easy integration
  • Environmentally friendly with RoHS certification

This product offers dependable performance, ensuring longevity and effectiveness in reducing electromagnetic interference.
