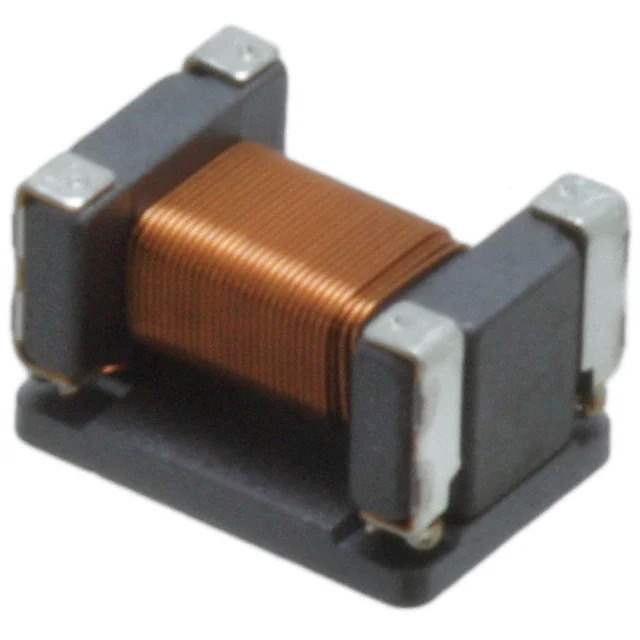

Same model may have multiple batches, images only for reference.

B82787C0513H002

Name: B82787C0513H002
Brand: EPCOS (TDK)
SKU: 849206
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B82787C0513H002
Manufacturer	EPCOS (TDK)
Catalog	Common Mode Chokes
Description	CMC 51UH 200MA 2LN 2.8KOHM SMD / 51 μH @ 100 kHz 2 Line Common Mode Choke Surface Mount 2.8 kOhms @ 10 MHz 200mA DCR 1Ohm
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Common Mode Chokes
Mfr	EPCOS (TDK)
Series	ACT45B
Package	Tape & Reel
Product Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	2.8 kOhms @ 10 MHz
Inductance @ Frequency	51 µH @ 100 kHz
Current Rating (Max)	200mA
DC Resistance (DCR) (Max)	1Ohm
Voltage Rating - DC	50V
Temperature Range - Operating	-40°C ~ 150°C
Ratings	AEC-Q200
Mounting Type	Surface Mount
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max)	0.118" (3.00mm)
Package / Case	Horizontal, 4 PC Pad
Standard Package	2,500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	849206-B82787C0513H002
Ultra Librarian 3D Model	Ultra Librarian B82787C0513H002 CAD Model

Alternative Products

Description

The B82787C0513H002 common mode choke is a high-quality electronic component designed for signal line filtering applications. EPCOS (TDK) manufactures the B82787C0513H002.

Voltage Rating: 50V DC
Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height: 0.118" (3.00mm)
Maximum Current Rating: 200mA
Impedance: 2.8 kOhms @ 10 MHz
Inductance: 51 μH @ 100 kHz
Mounting Type: Surface Mount
Package: Horizontal, 4 PC pad
Temperature Range: -40°C to 150°C
Product Status: Active
