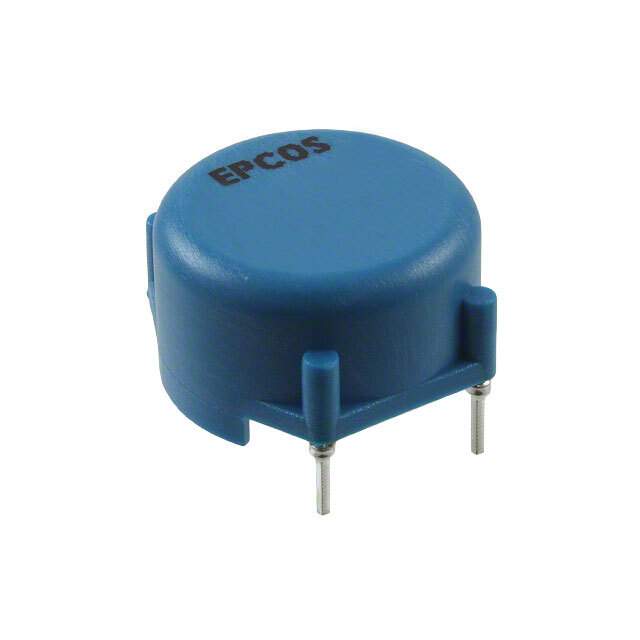

B82722A2302N Real Image
Same model may have multiple batches, images only for reference.

B82722A2302N

Part No B82722A2302N
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 1.2MH 3A 2LN TH
Datasheet
B82722A2302N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Tray
Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.2mH @ 10kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 56 mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C to 125°C
Approvals ENEC, UR, VDE
Mounting Through Hole
Height (Max) 0.524" (13.30mm)
Dimension Horizontal, 4 PC Pin
Win Source Part Number 200257-B82722A2302N
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82722A2302N CAD Model

Description

Description

The B82722A2302N is a top-tier common mode choke that excels in noise suppression for precision electronics.

Features and Benefits

  • Precision Noise Suppression: Ideal for sensitive electronics.
  • High Thermal Stability: Maintains performance across temperature extremes.
  • Compact Footprint: Suitable for space-constrained designs.

Applications

  • Medical Equipment
  • Instrumentation
  • High-Fidelity Audio Systems

Additional Details: This choke supports operating temperatures from -40°C to +85°C, making it versatile for various applications.
