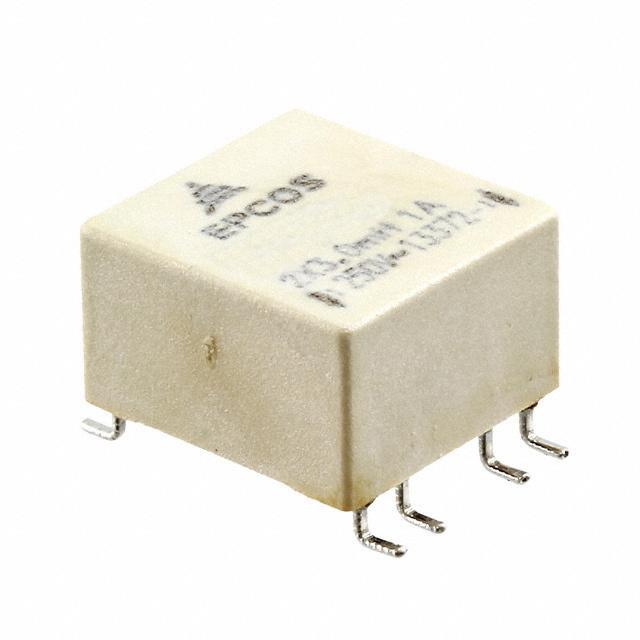

Same model may have multiple batches, images only for reference.

B82720S2102N040

Name: B82720S2102N040
Brand: EPCOS (TDK)
SKU: 436448
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B82720S2102N040
Manufacturer	EPCOS (TDK)
Catalog	Common Mode Chokes
Description	Common Mode Chokes Dual 3000uH 10kHz 1A 0.22Ohm DCR SMD Automotive T/R / COMMON MODE CHOKE 3MH 1A 2LN SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	EPCOS (TDK)
Packaging	Reel - TR
Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	3mH @ 10kHz
Current Rating (Max)	1A
DC Resistance (DCR) (Max)	220 mOhm (Typ)
Voltage Rating - AC	250V
Temperature Range - Operating	-40°C to 125°C
Mounting	SMD (SMT)
Height (Max)	0.421" (10.70mm)
Dimension	Horizontal, 8 Gull Wing
Win Source Part Number	1021778-B82720S2102N040
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	B82720S
Introduction Date	January 27, 1999
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian B82720S2102N040 CAD Model

Alternative Products

Description

It has a voltage rating of 250V and a current rating of 1A.

Voltage Rating: 250V
Current Rating: 1A
DC Resistance: 220 mOhm (Typ)
Inductance: 3mH @ 10kHz
Package: Horizontal, 8 Gull Wing
Height: 0.421" (10.70mm)
Operating Temperature: -40°C to 125°C
Introduction Date: January 27, 1999
Estimated EOL Date: 2025
Halogen-Free Compliant: Yes
