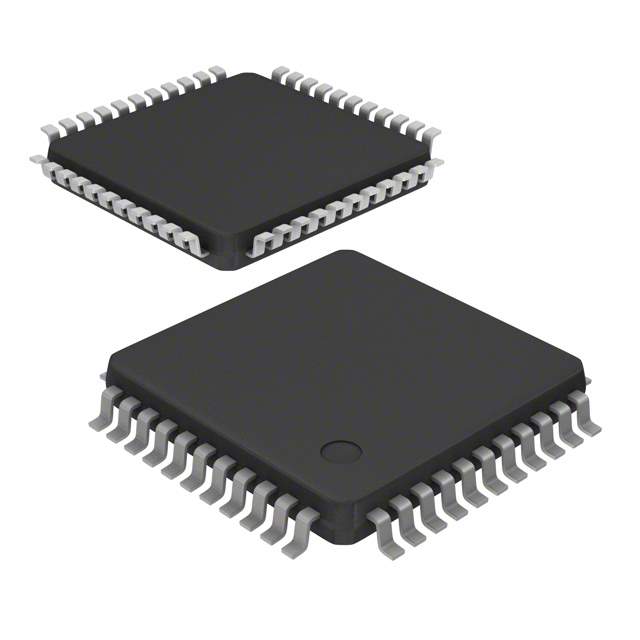

Z8F2421AN020SG Real Image
Same model may have multiple batches, images only for reference.

Z8F2421AN020SG

Part No Z8F2421AN020SG
Manufacturer Zilog
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 24KB FLASH 44LQFP
Datasheet
Z8F2421AN020SG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Zilog
Packaging Tray
Status Active
Core Processor eZ8
Part Core Size 8-Bit
Speed(Frequency) 20MHz
Number of I/O 31
Program Memory Size 24KB (24K x 8)
Program Memory Type FLASH
Data RAM Size 2K x 8
Supply Voltage - Operating 3 V to 3.6 V
Data Converters A/D 8x10b
Temperature Range - Operating 0°C to 70°C (TA)
Case / Package 44-QFP (10x10)
Win Source Part Number 057943-Z8F2421AN020SG
Popularity Medium
Supply and Demand Status Limited
Quantity per package 160
Ultra Librarian 3D Model Ultra Librarian Z8F2421AN020SG CAD Model

Description

The Zilog Z8F2421AN020SG is an 8-bit core processor that is designed for use in various electronic devices.

  • I/O Ports: 31
  • Program Memory Size: 24KB
  • Program Memory Type: FLASH
  • Data Converters: A/D 8x10b
  • Package: 44-QFP (10x10)
  • Speed Frequency: 20MHz
  • Temperature Range: 0°C to 70°C
  • Supply Voltage: 3V to 3.6V
