Same model may have multiple batches, images only for reference.

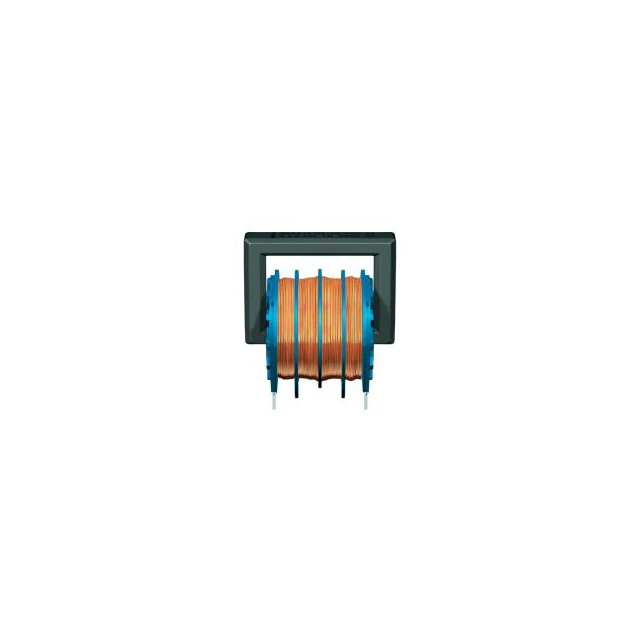

B82614R2202A030 Real Image
Same model may have multiple batches, images only for reference.

B82614R2202A030

Part No B82614R2202A030
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description Power line chokes
Datasheet
B82614R2202A030 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Series B82614
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1mH @ 100kHz
Current Rating (Maximum) 2A
DC Resistance (DCR) (Maximum) 430 mOhm (Typ)
Voltage Rating - AC 250V
Mounting Style Through Hole
Size 1.280" L x 0.827" W (32.50mm x 21.00mm)
Height (Maximum) 1.220" (31.00mm)
Package Vertical, 4 PC Pin
Win Source Part Number 1150908-B82614R2202A030
Manufacturer Homepage www.epcos.com
Popularity Medium
Supply and Demand Status Balance
Family Name B82614
Introduction Date January 27, 1999
ECCN EAR99
Country of Origin China, Germany, Hungary
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian B82614R2202A030 CAD Model

Description

The 1150908-B82614R2202A030 is a high-quality power line filter that provides reliable noise suppression from EPCOS (TDK).

  • Voltage Rating: It has a voltage rating of 250V AC and can handle a maximum current of 2A.
  • Design: This component is designed to operate in a wide temperature range and can withstand harsh environments.
  • Packaging: It is available in tray packaging and has a medium popularity rating.
  • Information: The manufacturer's website provides more information about this component and its specifications, including impedance and inductance @ frequency information.
