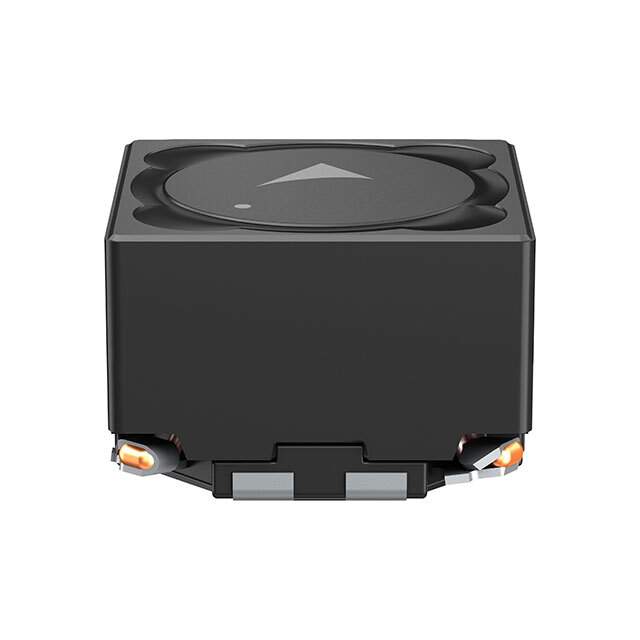

The B82477D4473M900 is an Array, Signal Transformer Inductor with a height of 0.335" (8.50mm) and a package dimension of 0.492" L x 0.492" W (12.50mm x 12.50mm).

• Height: 0.335" (8.50mm)
• Package Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
• Tolerance: ±20%
• Current Rating: 2.44 A
• Current Saturation - Series: 1.65 A
• Current Saturation - Parallel: 3.3 A
• DC Resistance (DCR) - Parallel: 72.5mOhm Max
• DC Resistance (DCR) - Series: 290mOhm Max
• Inductance (Series): 188 µH
• Inductance (Parallel): 47 µH
• AEC-Q200: Rated
• Shielding: Shielded
• Mounting: SMD (SMT) technology
• Package/Case: Nonstandard
• Temperature Range: -55°C ~ 150°C
• Manufacturer: EPCOS - TDK Electronics
