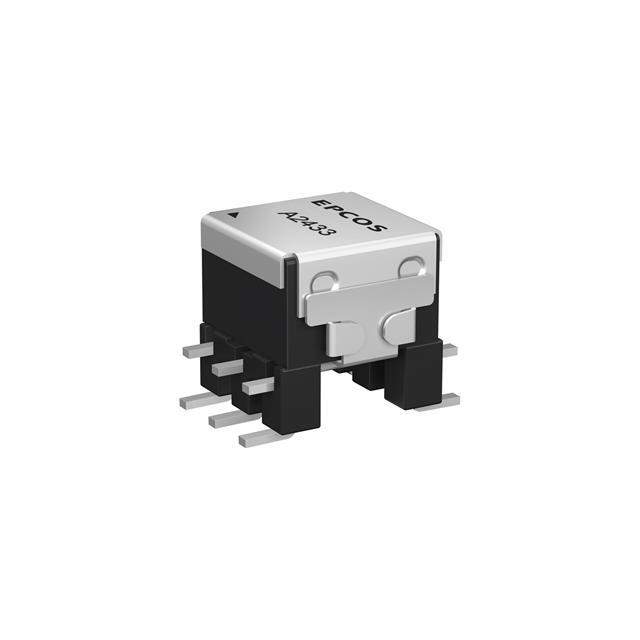

B78416A2386A003 Real Image
Same model may have multiple batches, images only for reference.

B78416A2386A003

Part No B78416A2386A003
Manufacturer EPCOS (TDK)
Catalog Pulse Transformers
Description EP6 SMD TRANSFORMER / 230µH Pulse Transformer 1:1:9 Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr EPCOS - TDK Electronics
Series B7416A
Package Tape & Reel
Inductance 230µH
Mounting SMD (SMT)
Dimension 0.260" L x 0.260" W (6.60mm x 6.60mm)
Height - Seated (Max) 0.280" (7.10mm)
Temperature Range - Operating -40°C ~ 85°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names B78416A2386A 3,495-77441-6,495-77441-1,495-77441-2
Standard Package 1,000
Win Source Part Number 1190758-B78416A2386A003
Ultra Librarian 3D Model Ultra Librarian B78416A2386A003 CAD Model

Description

The B78416A2386A003 from EPCOS - TDK Electronics is a pulse transformer that comes in tape and reel packaging.

  • Mounting Type: SMD (SMT)
  • Inductance: 230μH
  • Temperature Range: -40°C to 85°C
  • Height: 0.280" (7.10mm)
  • Standard Package: 1,000
