Same model may have multiple batches, images only for reference.

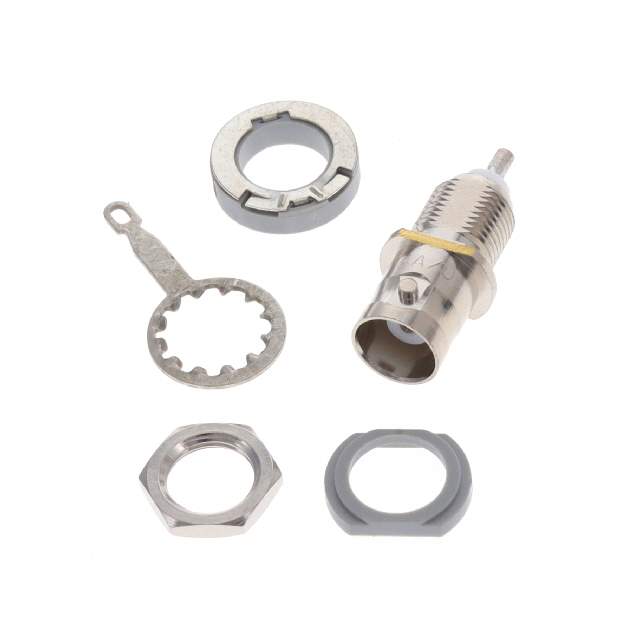

456E107S Real Image
Same model may have multiple batches, images only for reference.

456E107S

Part No 456E107S
Manufacturer Amphenol Commercial Products
Catalog Coaxial Connectors (RF)
Description CONN BNC JACK STR 50OHM SOLDER
Datasheet
456E107S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol Commercial Products
Packaging Bulk
Status Active
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder Cup
Shield Termination Solder Tag
Impedance 50 Ohm
Mounting Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Fastening Type Bayonet Lock
Features Extended Insulation, Filter
Housing Color Silver
Includes 5 pcs - 1 Connector, 1 Filter Ring, 1 Insulating Washer, 1 Nut, 1 Solder Tag
Body Material Brass
Body Finish Nickel
Center Contact Plating Silver
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -20°C to 85°C
Center Contact Material Phosphor Bronze
Voltage Rating 200V
Win Source Part Number 1002211-456E107S
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 456E107S CAD Model

Description

The Amphenol Commercial Products 1002211-456E107S is a BNC jack, female socket connector with a voltage rating of 200V and an impedance of 50 Ohm.

  • Voltage Rating: 200V
  • Impedance: 50 Ohm
  • Connector Type: Bayonet Lock
  • Fastening Type: Solder Cup
  • Connector Style: BNC
  • Mounting Type: Panel Mount
  • Body Material: Brass
  • Body Finish: Nickel
  • Center Contact Material: Phosphor Bronze
  • Center Contact Plating: Silver
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Housing Color: Silver
  • Mounting Feature: Bulkhead - Rear Side Nut
  • Shield Termination: Solder Tag
