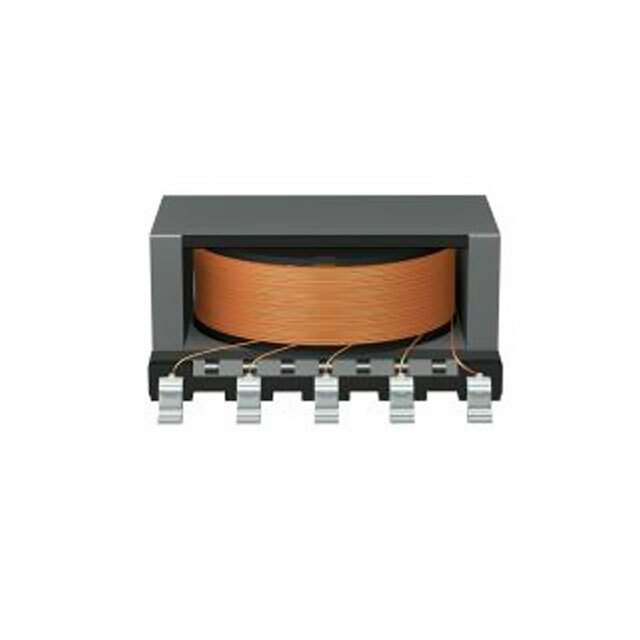

B78334B1033A003 Real Image
Same model may have multiple batches, images only for reference.

B78334B1033A003

Part No B78334B1033A003
Manufacturer EPCOS (TDK)
Catalog Switching Converter, SMPS Transformers
Description XFRMER DC/DC CONV SMD / For For DC/DC Converters SMPS Transformer 1000Vrms Isolation Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Switching Converter, SMPS Transformers
Mfr EPCOS - TDK Electronics
Package Tape & Reel
Type For DC/DC Converters
Voltage - Isolation 1000Vrms
Inductance @ Frequency 100µH @ 10kHz
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Dimension 0.472" L x 0.535" W (12.00mm x 13.60mm)
Height - Seated (Max) 0.252" (6.40mm)
Footprint 0.480" L x 0.535" W (12.20mm x 13.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 495-77189-6,495-77189-1,495-77189-2,B78334B1033A003-ND,B78334B1033A3,B78334B1033A 3
Standard Package 600
Win Source Part Number 1047911-B78334B1033A003
Ultra Librarian 3D Model Ultra Librarian B78334B1033A003 CAD Model

Description

The EPCOS - TDK Electronics B78334B1033A003 is a switching converter transformer that is designed for DC/DC converters.

  • Type: Switching Converter Transformer
  • Application: DC/DC Converters
  • Package: Tape and Reel
  • Standard Package: 600
  • Height (Seated): 0.252 inches (6.40mm)
  • Inductance: 100µH @ 10kHz
  • Voltage Isolation: 1000Vrms
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.472 inches L x 0.535 inches W (12.00mm x 13.60mm)
  • Category: Transformers
  • Popularity: Low
  • MSL Level: 1 (unlimited)
  • HTSUS: 8504.31.2000
  • Other names: 495-77189-6, 495-77189-1, 495-77189-2, B78334B1033A003-ND, B78334B1033A3, B78334B1033A 3
