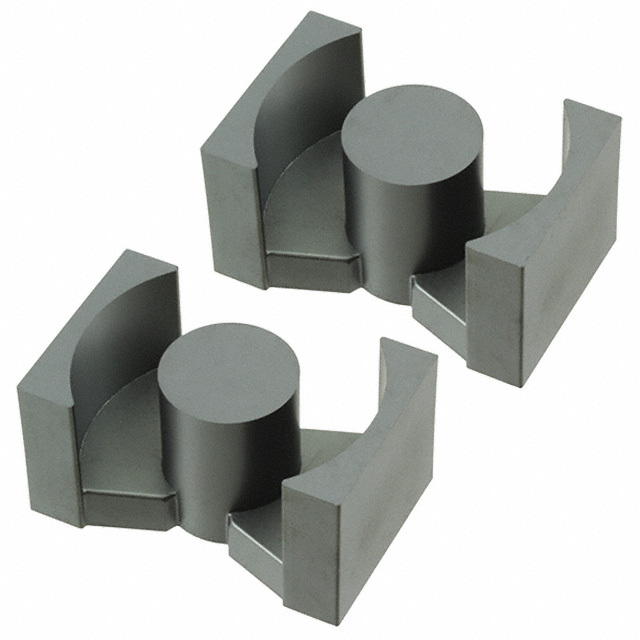

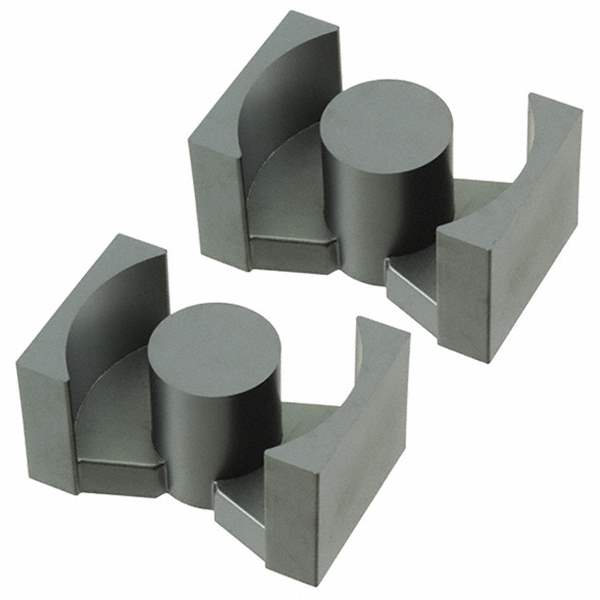

B65875B0000R097 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B65875B0000R097

Part No B65875B0000R097
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated N97 Ferrite Core PQ Type 0.807" (20.50mm) Length 0.551" (14.00mm) Width Diameter 0.319" (8.10mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series PQ20/16
Packaging Box
Core Type PQ
Supplier Device Package PQ 20 x 16
Material N97
Inductance Factor (Al) 3.2 µH
Tolerance -20%, +30%
Gap Ungapped
Effective Permeability (µe) 1475.0
Initial Permeability (µi) 2300
Core Factor (ΣI/A) mm⁻¹ 0.579
Effective Length (le) mm 37.0
Effective Area (Ae) mm2 64.0
Minimum Core Cross Section (Amin) mm2 57.6
Effective Magnetic Volume (Ve) mm3 2367.0
Finish Uncoated
Height 0.319" (8.10mm)
Length 0.807" (20.50mm)
Width 0.551" (14.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1490290-B65875B0000R097
Ultra Librarian 3D Model Ultra Librarian B65875B0000R097 CAD Model
