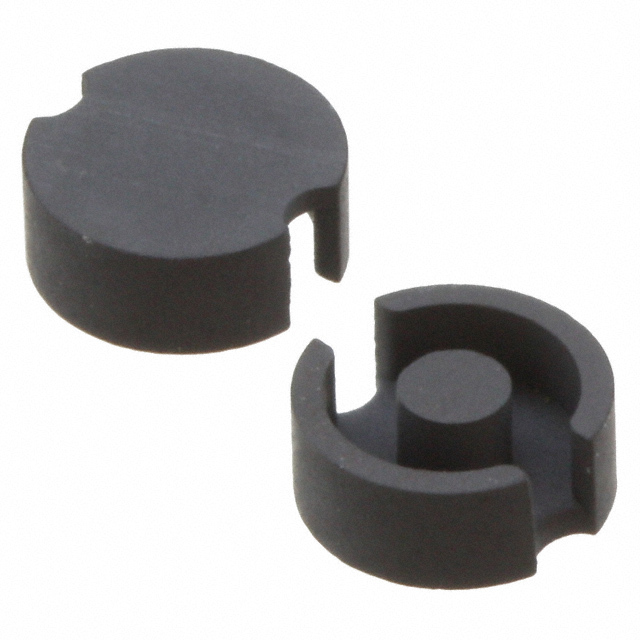

Same model may have multiple batches, images only for reference.
B65491C0000Y001 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B65491C0000Y001

Part No B65491C0000Y001
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated K1 Ferrite Core P (Pot Core) Type Length Width 0.132" (3.35mm) Diameter 0.051" (1.29mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series P3.3/2.6
Packaging Box
Core Type P (Pot Core)
Supplier Device Package P 3.3 x 2.6
Material K1
Diameter 0.132" (3.35mm)
Inductance Factor (Al) 25 nH
Tolerance -30%, +40%
Gap Ungapped
Effective Permeability (µe) 75.0
Initial Permeability (µi) 80
Core Factor (ΣI/A) mm⁻¹ 3.72
Effective Length (le) mm 5.1
Effective Area (Ae) mm2 1.37
Effective Magnetic Volume (Ve) mm3 7.0
Finish Uncoated
Height 0.051" (1.29mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489523-B65491C0000Y001
Ultra Librarian 3D Model Ultra Librarian B65491C0000Y001 CAD Model
