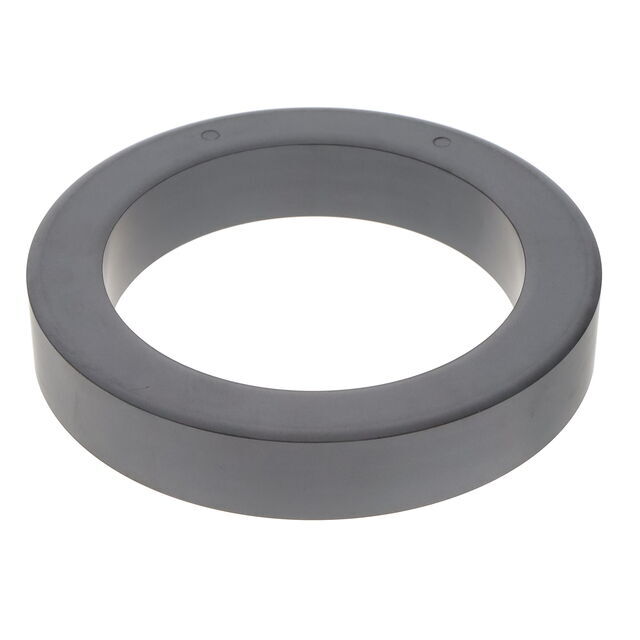

B64290A0705X010 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B64290A0705X010

Part No B64290A0705X010
Manufacturer EPCOS (TDK)
Catalog Ferrite Cores
Description Uncoated K10 Ferrite Core Toroid Type Length Width 5.512" (140.00mm) Diameter 0.984" (25.00mm) Height
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series T140/103/25
Packaging Box
Core Type Toroid
Supplier Device Package R 140 x 103 x 25
Material K10
Diameter 5.512" (140.00mm)
Inductance Factor (Al) 1.1 µH
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 700
Core Factor (ΣI/A) mm⁻¹ 0.82
Effective Length (le) mm 375.8
Effective Area (Ae) mm2 458.9
Effective Magnetic Volume (Ve) mm3 172440.0
Finish Uncoated
Height 0.984" (25.00mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.90.9630
Win Source Part Number 1489325-B64290A0705X010
Ultra Librarian 3D Model Ultra Librarian B64290A0705X010 CAD Model
