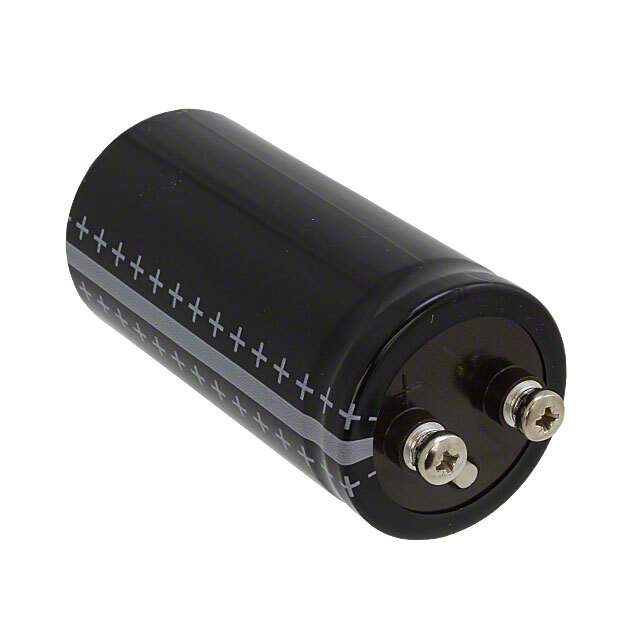

B41456B8339M000 Real Image
Same model may have multiple batches, images only for reference.

B41456B8339M000

Part No B41456B8339M000
Manufacturer EPCOS (TDK)
Catalog Aluminum Capacitors
Description CAP ALUM 33000UF 20% 63V SCREW / 33000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 12mOhm @ 100Hz 12000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr EPCOS - TDK Electronics
Series B41456
Package Bulk
Capacitance 33000 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 12mOhm @ 100Hz
Lifetime @ Temp. 12000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 14 A @ 100 Hz
Impedance 12 mOhms
Lead Spacing 0.874" (22.20mm)
Dimension 2.032" Dia (51.60mm)
Height - Seated (Max) 4.201" (106.70mm)
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0085
Other Names B41456B8339M,B41456B8339M-ND,495-6337
Standard Package 36
Win Source Part Number 965157-B41456B8339M000
Ultra Librarian 3D Model Ultra Librarian B41456B8339M000 CAD Model

Description

The B41456B8339M000 is a general purpose aluminum electrolytic capacitor manufactured by EPCOS (TDK).

  • Capacitance: 33000 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Impedance: 12 mOhms
  • Lifetime: 12000 Hrs @ 85°C
  • Polarized: Yes
  • Mounting: Through Chassis
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -40°C
  • Maximum Operating Temperature: 85°C
  • Alternative Parts: LNR1V333MSE, EKMH250VNN333MA50T, ELG339M025AT6AA, DCMC353U016AA2B, DCMC363U035AC2B, and DCM353U040BB2B
