Same model may have multiple batches, images only for reference.

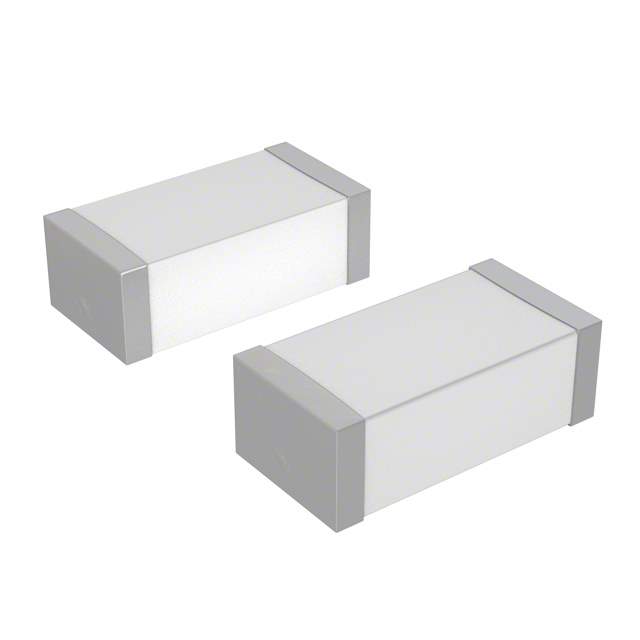

FCN1206A472J-H3 Real Image
Same model may have multiple batches, images only for reference.

FCN1206A472J-H3

Part No FCN1206A472J-H3
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 4700PF 5% 100VDC 1206 / 4700 pF Film Capacitor 63V 100V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 1206 (3216 Metric)
Datasheet
FCN1206A472J-H3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series FCN
Package Tape & Reel (TR)
Capacitance 4700 pF
Tolerance ±5%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Temperature Range - Operating -55°C ~ 105°C
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.067" (1.70mm)
Termination Solder Pads
Applications General Purpose
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Standard Package 2,000
Win Source Part Number 1145022-FCN1206A472J-H3
Ultra Librarian 3D Model Ultra Librarian FCN1206A472J-H3 CAD Model

Description

The FCN series capacitor is a film capacitor that is designed for general-purpose applications.

  • Type: Film Capacitor
  • Application: General Purpose
  • Mounting: Surface Mount Device (SMD)
  • Package / Case Size: 1206 (3216 metric)
  • Height: 0.067" (1.70mm)
  • Capacitance: 4700 pF
  • Tolerance: ±5%
  • Dielectric Material: Polyester, Polyethylene Naphthalate (PEN), Metallized-Stacked
  • Voltage Rating (AC): 63V AC
  • Voltage Rating (DC): 100V DC
  • Operating Temperature Range: -55°C to 105°C
  • Package: Tape & Reel (TR)
  • Standard Package: 2,000
  • Manufacturer: Cornell Dubilier Electronics (CDE)
