Same model may have multiple batches, images only for reference.

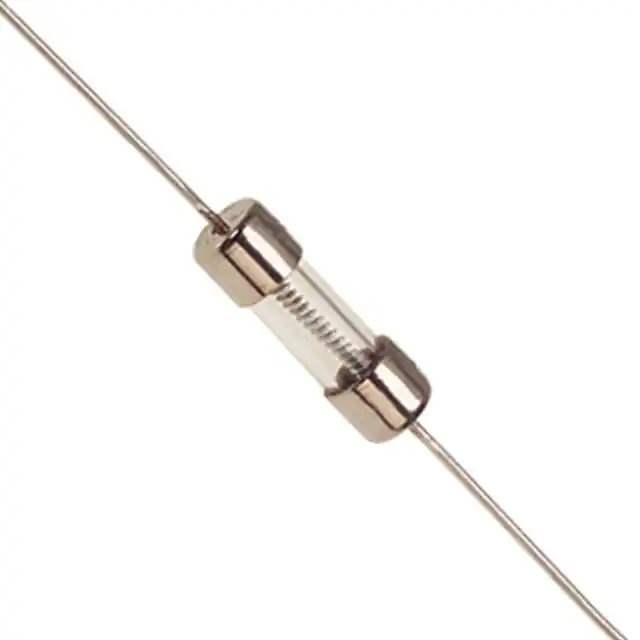

0230006.MXP Real Image
Same model may have multiple batches, images only for reference.

0230006.MXP

Part No 0230006.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 6A 125VAC/VDC AXIAL / 6 A 125 V AC 125 V DC Fuse Cartridge, Glass Through Hole Cartridge, Non-Standard (Axial)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 230
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Type Cartridge, Glass
Current Rating (Amps) 6 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case Cartridge, Non-Standard (Axial)
Breaking Capacity @ Rated Voltage 400A
Melting I2t 380
Approval Agency CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.177" Dia x 0.571" L (4.50mm x 14.50mm)
DC Cold Resistance 0.0141 Ohms
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
California Prop 65 Warning Information
Win Source Part Number 904456-0230006.MXP
Ultra Librarian 3D Model Ultra Librarian 0230006.MXP CAD Model

Description

The 904456-0230006.MXP is a glass cartridge type fuse from the 230 series by Littelfuse Inc.

  • Application: Circuit Protection
  • Voltage Rating: 125V AC/DC
  • Response Time: Slow Blow
  • Breaking Capacity: 400A @ rated voltage
  • Current Rating: 6A
  • Mounting: Through-hole
  • Size: 0.177" diameter and 0.571" length
  • Product Lineup: Active
  • Package: 1,000 pieces
  • Series: 230
