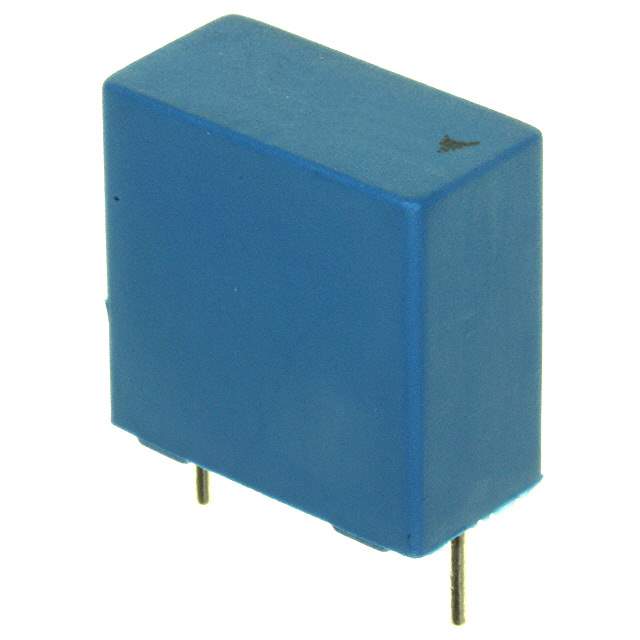

B32522D8224K000 Real Image
Same model may have multiple batches, images only for reference.

B32522D8224K000

Part No B32522D8224K000
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 0.22UF 10% 630VDC RAD / Cap Film 0.22uF 630V PET 10% (18 X 9 X 17.5mm) Radial Stacked 15mm 125°C Automotive Bulk
Datasheet
B32522D8224K000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer EPCOS (TDK)
Series B32522
Packaging Bulk
Capacitance 0.22μF
Tolerance ±10%
Voltage Rating - AC 200V
Voltage Rating - DC 630V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature Range -55°C ~ 125°C
Mounting Style Through Hole
Package Radial
Dimension 0.709" L x 0.354" W (18.00mm x 9.00mm)
Height - Seated (Maximum) 0.689" (17.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; EMI, RFI Suppression
Win Source Part Number 772380-B32522D8224K000
Popularity Medium
Supply and Demand Status Limited
Family Name B32522
ECCN EAR99
Country of Origin Brazil
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian B32522D8224K000 CAD Model

Description

The EPCOS (TDK) B32522D8224K000 capacitor is a radial through-hole component designed for automotive and EMI/RFI suppression applications.

  • Capacitance: 0.22μF
  • Tolerance: ±10%
  • Voltage Rating AC: 200V
  • Voltage Rating DC: 630V
  • Dielectric Material: Polyester, Polyethylene Terephthalate (PET), Metallized-Stacked
  • Packaging: Bulk
  • Operating Temperature: -55°C to 125°C
  • Dimension: 0.709" L x 0.354" W (18.00mm x 9.00mm)
  • Height Seated (Max): 0.689" (17.50mm)
