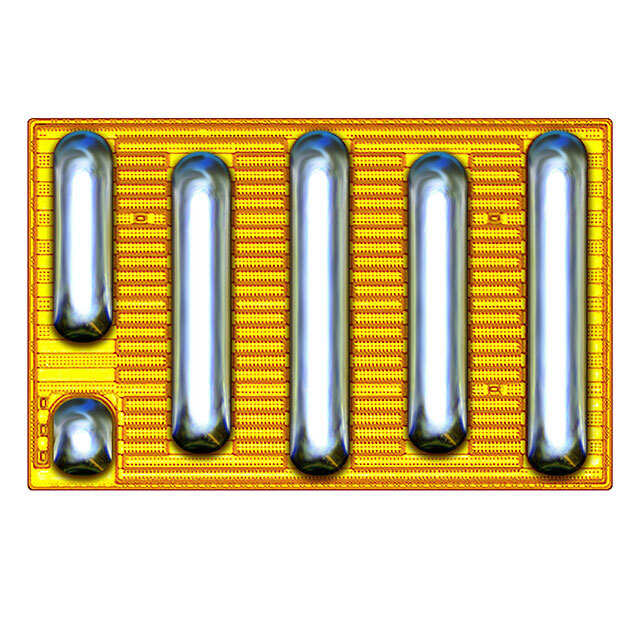

EPC2204A EPC – Price, Stock & Datasheet

Same model may have multiple batches, images only for reference.

EPC2204A EPC – Price, Stock & Datasheet

Same model may have multiple batches, images only for reference.

EPC2204A

Get a Quote

Part No	EPC2204A
Manufacturer	EPC
Catalog	FETs - Single
Description	TRANS GAN 80V .006OHM AECQ101
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor ProductsTransistorsFETs, MOSFETsSingle FETs, MOSFETs
Mfr	EPC
Series	eGaN?
Part Status	Active
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	29A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	6mOhm @ 16A, 5V
Vgs(th) (Max) @ Id	2.5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	7.4 nC @ 5 V
Vgs (Max)	+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds	851 pF @ 50 V
Operating Temperature	-40°C ~ 150°C (TJ)
Grade	Automotive
Qualification	AEC-Q101
Mounting Type	Surface Mount
Supplier Device Package	Die
Package / Case	Die
Base Product Number	EPC2204
Ultra Librarian 3D Model	Ultra Librarian EPC2204A CAD Model
